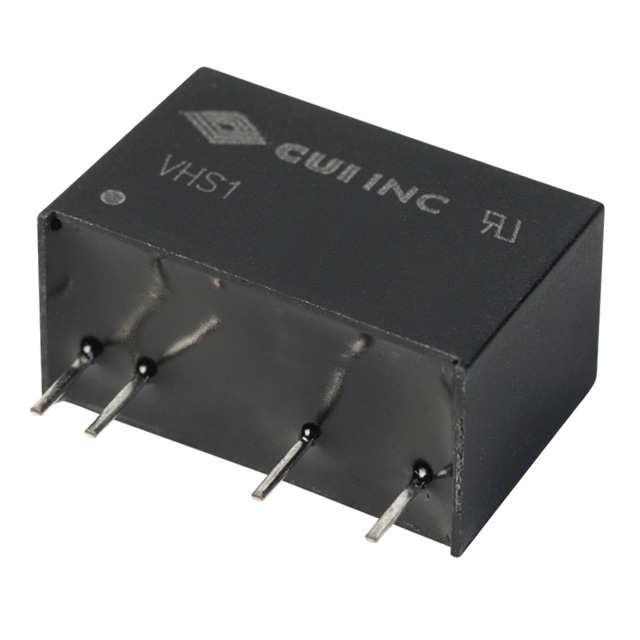

VHS1-S12 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Current - Output (Max) [Max] | Approval Agency | Voltage - Output 1 | Number of Outputs | Voltage - Isolation | Voltage - Input (Max) [Max] | Features | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Input (Min) [Min] | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 7-SIP Module 4 Leads | Through Hole | 200 mA | UL | 5 V | 1 | 6000 VDC | 13.2 V | SCP | 60950-1 | 85 °C | -40 C | Medical | 10.8 V | Isolated Module | 75 % |
 CUI Inc. | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.7 mm | 7-SIP Module 5 Leads | Through Hole | 111 mA | UL | 9 V | 1 | 6000 VDC | 13.2 V | SCP | 60950-1 | 105 ░C | -40 C | ITE (Commercial) | 10.8 V | Isolated Module | |
CUI Inc. | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 7-SIP Module 4 Leads | Through Hole | 84 mA | UL | 12 V | 1 | 6000 VDC | 13.2 V | SCP | 60950-1 | 85 °C | -40 C | Medical | 10.8 V | Isolated Module | 78 % |
CUI Inc. | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 7-SIP Module 4 Leads | Through Hole | 67 mA | UL | 15 V | 1 | 6000 VDC | 13.2 V | SCP | 60950-1 | 85 °C | -40 C | Medical | 10.8 V | Isolated Module | 78 % |
