726-110 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 110POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Gender	Number of Rows [custom]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Card Type	Mounting Type	Number of Positions	Contact Finish	Read Out	Number of Positions/Bay/Row	Contact Type

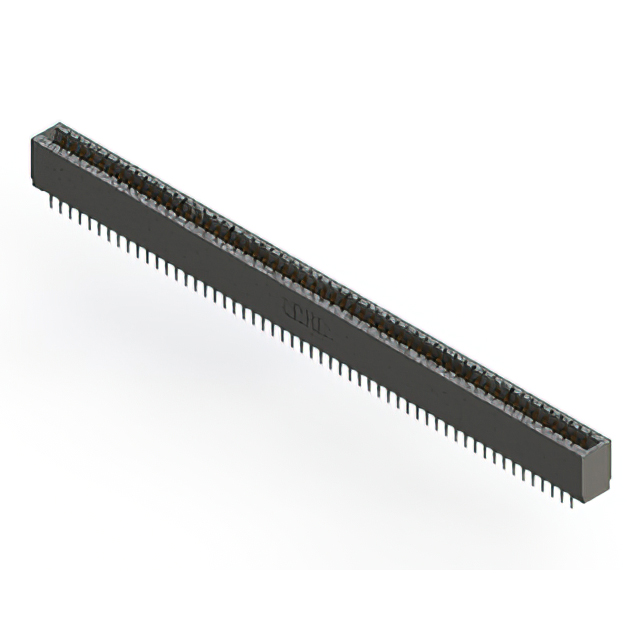

EDAC Inc. 726-110-525-201	2	Polyester Thermoplastic	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	2	3.18 mm	0.125 in	-40 C	105 ░C	Copper Alloy	Black	Non Specified - Dual Edge	Through Hole	110	Gold	Dual	55	Cantilever
EDAC Inc. 726-110-527-201	2	Polyester Thermoplastic	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	2	3.18 mm	0.125 in	-40 C	105 ░C	Copper Alloy	Black	Non Specified - Dual Edge	Through Hole	110	Gold	Dual	55	Cantilever
EDAC Inc. 726-110-540-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	2	3.18 mm	0.125 in	-40 C	105 ░C	Copper Alloy	Black	Non Specified - Dual Edge	Through Hole	110	Gold	Dual	55	Cantilever
EDAC Inc. 726-110-545-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	2	3.18 mm	0.125 in	-40 C	105 ░C	Copper Alloy	Black	Non Specified - Dual Edge	Through Hole	110	Gold	Dual	55	Cantilever
EDAC Inc. 726-110-541-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	2	3.18 mm	0.125 in	-40 C	105 ░C	Copper Alloy	Black	Non Specified - Dual Edge	Through Hole	110	Gold	Dual	55	Cantilever
EDAC Inc. 726-110-553-201	2	Polyester Thermoplastic	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	2	3.18 mm	0.125 in	-40 C	105 ░C	Copper Alloy	Black	Non Specified - Dual Edge	Through Hole	110	Gold	Dual	55	Cantilever

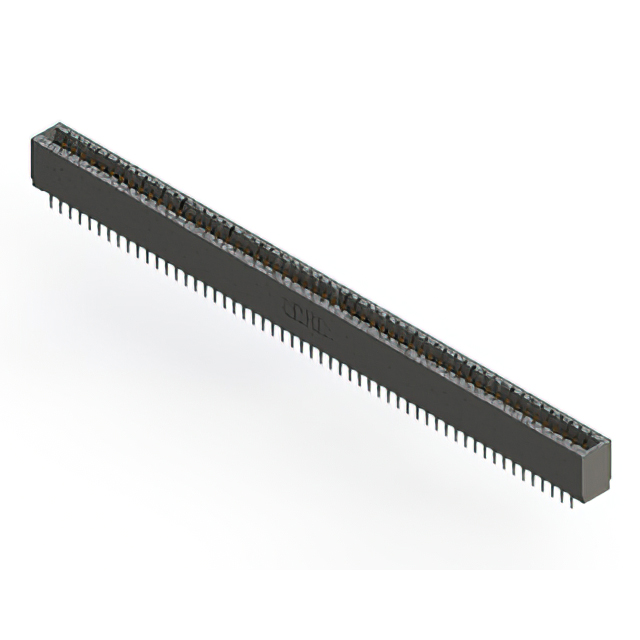

EDAC Inc. 726-110-520-201	2	Polyester Thermoplastic	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Female	2	3.18 mm	0.125 in	-40 C	105 ░C	Copper Alloy	Black	Non Specified - Dual Edge	Through Hole	110	Gold	Dual	55	Cantilever
