TA20-11 Series

Catalog

LED MATRIX 5X7 2 630NM RED

Part	Configuration [x]	Configuration [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Color	Millicandela Rating	Internal Connection	Voltage - Forward (Vf) (Typ)	Size / Dimension [z]	Size / Dimension [y]
Kingbright TA20-11SURKWA	5	7	2.09 in	0.33 in	38.2 mm	8.5 mm	53.1 mm	1.98 "	Red	130 mcd	Common Anode Column Common Cathode Row	1.95 V
Kingbright TA20-11CGKWA	5	7	2.09 in	0.33 in	38.2 mm	8.5 mm	53.1 mm	1.98 "	Green	52 mcd	Common Anode Column Common Cathode Row	2.1 V
Kingbright TA20-11EWA	5	7	1.5 in	0.33 in			38.1 mm	2.09 "	Red	10 mcd	Common Anode Column Common Cathode Row	2 V	8.5 mm	53.1 mm

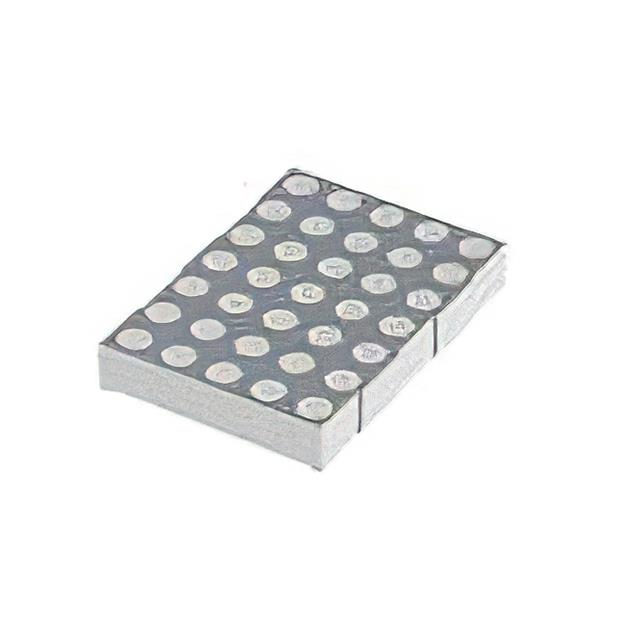

Kingbright TA20-11SURWA	5	7	2.09 in	0.33 in			53 mm	1.48 in	Red	100 mcd	Common Anode	1.85 V	8.45 mm	37.65 mm
Kingbright TA20-11GWA	5	7	1.5 in	0.33 in			38.1 mm	2.09 "	Green	15 mcd	Common Anode Column Common Cathode Row	2.2 V	8.5 mm	53.1 mm

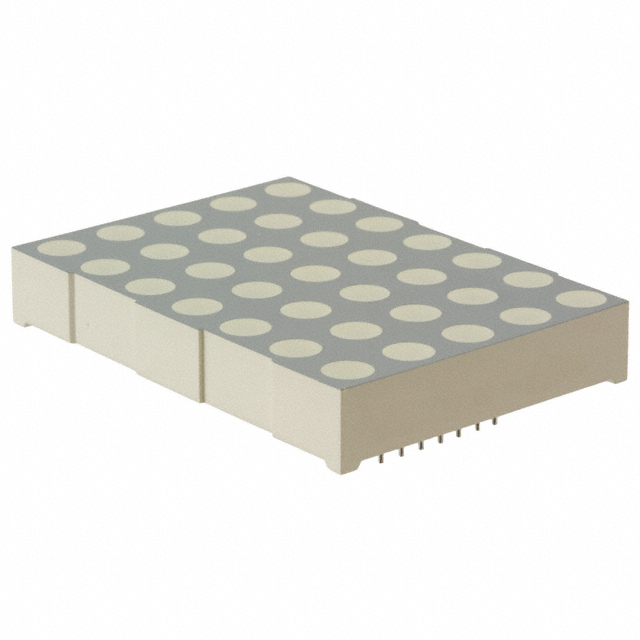

Kingbright TA20-11SRWA	5	7	1.5 in	0.33 in			38.1 mm	2.09 "	Red	48 mcd	Common Anode Column Common Cathode Row	1.85 V	8.5 mm	53.1 mm
Kingbright TA20-11SYKWA	5	7	2.09 in	0.33 in	38.2 mm	8.5 mm	53.1 mm	1.98 "	Yellow	160 mcd	Common Anode Column Common Cathode Row	2 V
