OSTTJ04 Series

Catalog

TERM BLOCK PLUG 4POS STR 3.5MM

Part	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Torque - Screw	Torque - Screw	Material Flammability Rating	Housing Material	Type	Voltage - UL	Number of Positions	Positions Per Level	Termination Style	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm²	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - IEC	Contact Mating Finish
On Shore Technology Inc. OSTTJ0411520	Brass	7 mm	6 mm	0.28 Nm	2.5 Lb-In	UL94 V-0	Brass	Plug Female Sockets	300 V	4	4	Screw	1	16 AWG	26 AWG	3.5 mm	0.138 "	Free Hanging (In-Line)	-30 ░C	105 ░C
On Shore Technology Inc. OSTTJ0431520	Brass	7 mm	6 mm	0.28 Nm	2.5 Lb-In	UL94 V-0	Brass	Plug Female Sockets	300 V	4	4	Screw	1	16 AWG	26 AWG	3.81 mm	0.15 in	Free Hanging (In-Line)	-30 ░C	105 ░C	1.5 mm˛	1.5 mm²	Green

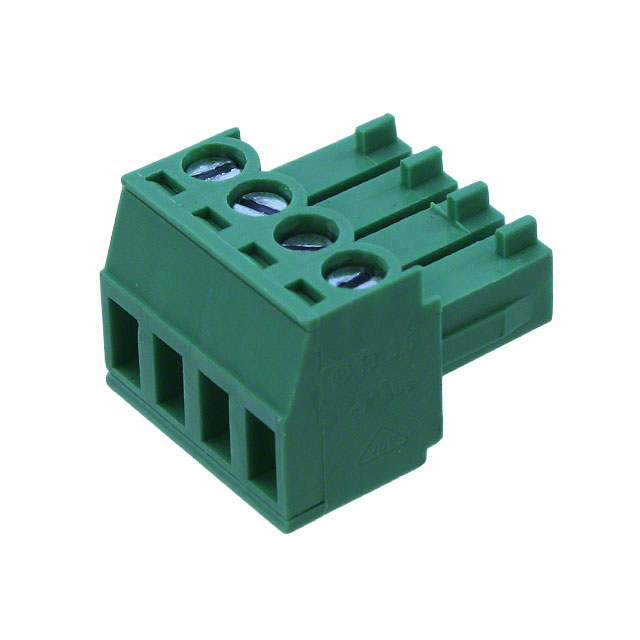

On Shore Technology Inc. OSTTJ0411530	Brass	7 mm	6 mm	0.28 Nm	2.5 Lb-In		Brass	Plug Female Sockets	300 V	4	4	Screw	1	16 AWG	26 AWG	3.5 mm	0.138 "	Free Hanging (In-Line)	-30 ░C	105 ░C

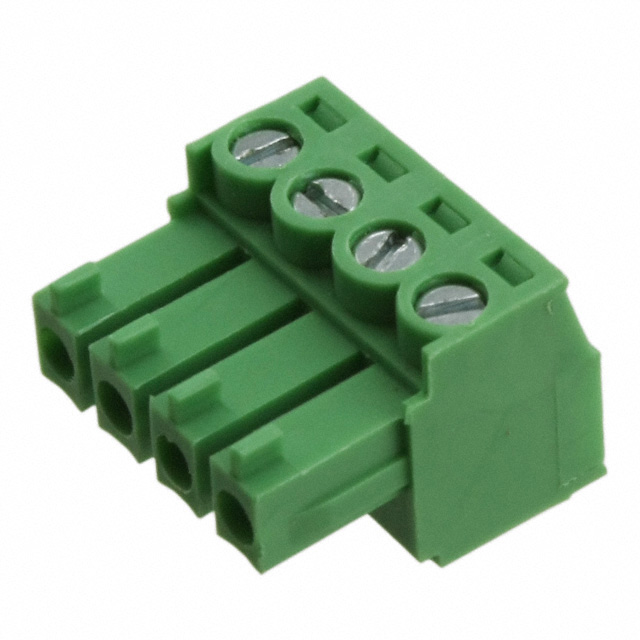

On Shore Technology Inc. OSTTJ0431530	Brass	7 mm	6 mm	0.28 Nm	2.5 Lb-In		Brass	Plug Female Sockets	300 V	4	4	Screw	1	16 AWG	26 AWG	3.81 mm	0.15 in	Free Hanging (In-Line)	-40 C	115 °C	1.5 mm˛	1.5 mm²	Green

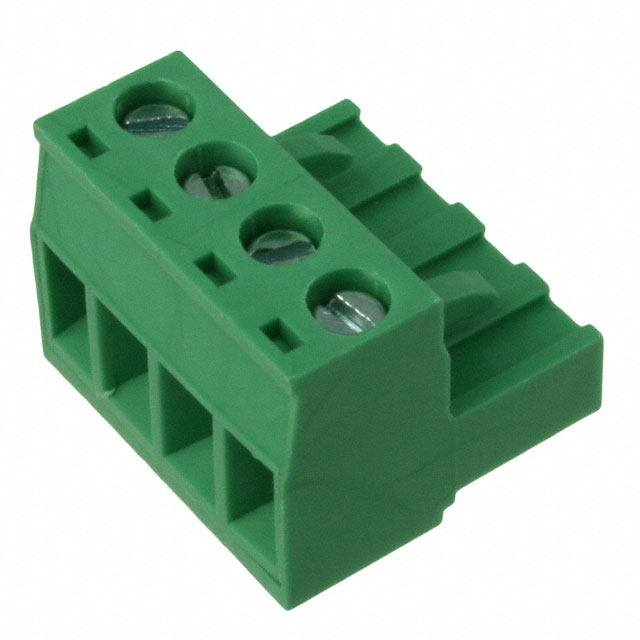

On Shore Technology Inc. OSTTJ047150	Brass	8 mm	7 mm	0.56 Nm	5 Lb-In	UL94 V-0	Brass	Plug Female Sockets	300 V	4	4	Screw	1	12 AWG	30 AWG	5 mm	0.197 in	Free Hanging (In-Line)	-40 C	115 °C			Green	0.34 mm²	2.5 mm²

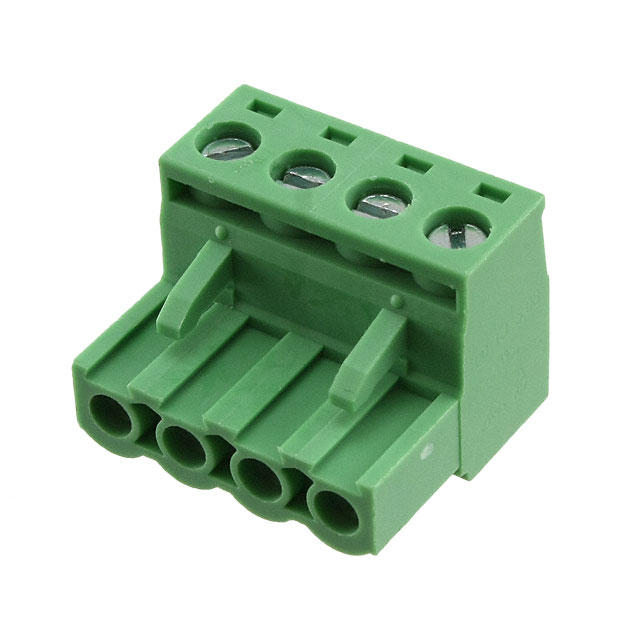

On Shore Technology Inc. OSTTJ045153	Brass	8 mm	7 mm	0.56 Nm	5 Lb-In	UL94 V-0	Brass	Plug Female Sockets	300 V	4	4	Screw	1	12 AWG	24 AWG	5.08 mm	0.2 in	Free Hanging (In-Line)	-30 ░C	105 ░C			Green	0.34 mm²	2.5 mm²	0.34 mm˛	2.5 mm˛	300 V	Tin
