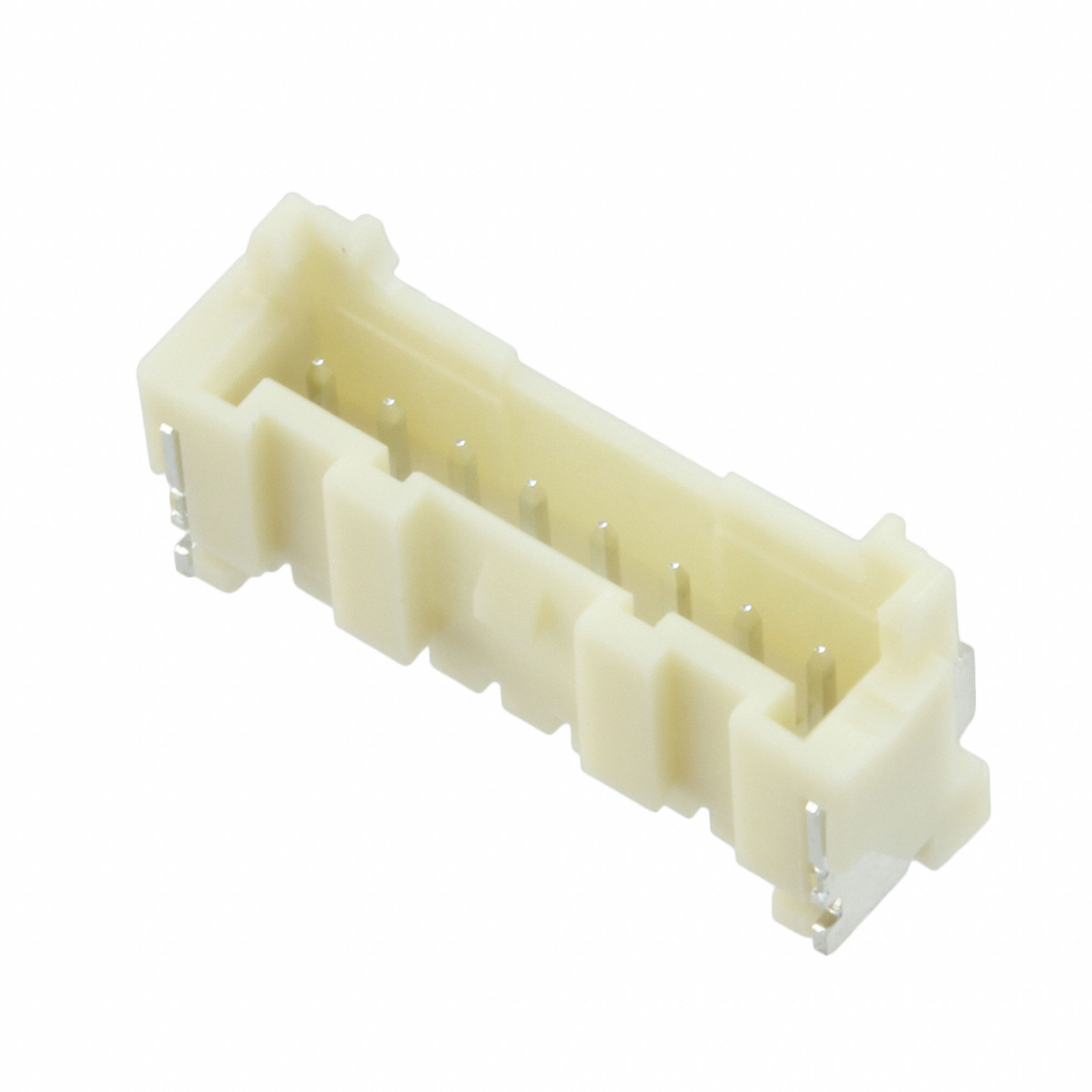

SM08B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 8POS 2MM
| Part | Number of Rows | Number of Positions | Contact Shape | Number of Positions Loaded | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Features | Contact Material | Insulation Material | Fastening Type | Shrouding | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Connector Type | Pitch - Mating | Pitch - Mating | Termination | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Style | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 1 | 8 | Square | All | 3 A | Right Angle Surface Mount | UL94 V-0 | Pick and Place Solder Retention | Copper Alloy | Nylon Polyamide (PA) | Locking Ramp | Shrouded - 4 Wall | 250 V | 85 °C | -25 °C | Natural | Header | 0.079 " | 2 mm | Solder | 5.69 mm | 0.224 in | Tin | Board to Cable/Wire | Male Pin |
