TB1-2H Series
Manufacturer: Switch Components
Beta
⌘K
VAC DPDT ON-OFF-(ON), 15/32
| Part | Quick Connect Size (0.250") | Termination Style | Voltage Rating - AC | Illumination | Mounting Type | Actuator Length | Actuator Type | Circuit | Bushing Thread | Current Rating | Panel Cutout Diameter | Panel Cutout Shape | Switch Function | Electrical Life (Cycles) | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

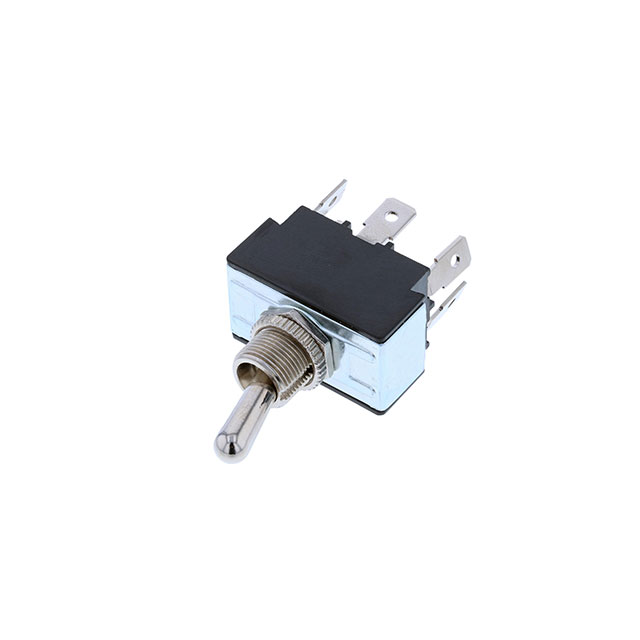

 Switch Components | 0.25 in | Quick Connect | 250 V | Non-Illuminated | Panel Mount | 16.5 mm | Standard Round | DPDT | 15/32-32 | 10 A | 12.2 mm | Circular | On-Off-Mom | ||

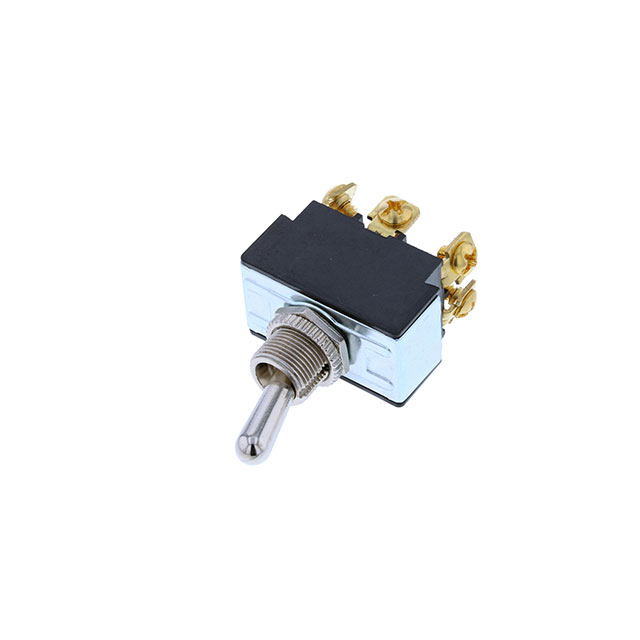

 Switch Components | Screw Terminal | 125 V | Non-Illuminated | Panel Mount | 16.5 mm | Standard Round | DPDT | 15/32-32 | 20 A 21 A | 12 mm | Circular | On-Off-Mom | 6000 Cycles | 14 V |
