VP03 Series

Catalog

PCB TERMINAL BLOCKS RISING CLAMP

Part	Positions Per Level	Torque - Screw	Torque - Screw	Features	Current	Housing Material	Mounting Type	Color	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Wire Termination	Mating Orientation	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Clamp Material - Plating	Voltage	Screw Material - Plating

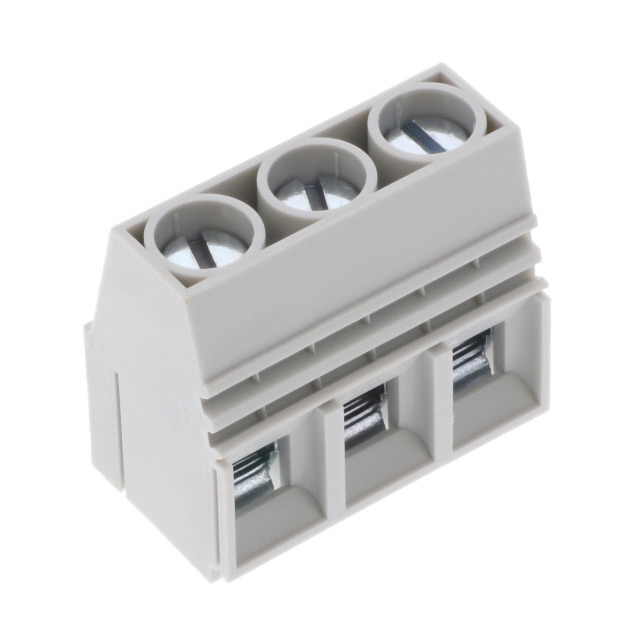

Amphenol Anytek VP036584000AG	3	2.15 Nm	19 Lb-In	Interlocking (Side)	65 A	Thermoplastic	Through Hole	Gray	M4.5	-40 °C	115 °C	1	Screw - Rising Cage Clamp	Horizontal with Board	10.16 mm	0.4 in	20 AWG	6 AWG	Steel Zinc Plated	300 V	Steel Zinc Plated
Amphenol Anytek VP0365850000G	3	2.15 Nm	19 Lb-In	Interlocking (Side)	65 A	Thermoplastic	Through Hole	Gray	M4.5	-40 °C	115 °C	1	Screw - Rising Cage Clamp	Horizontal with Board	10.16 mm	0.4 in	20 AWG	6 AWG	Steel Zinc Plated	300 V	Steel Zinc Plated

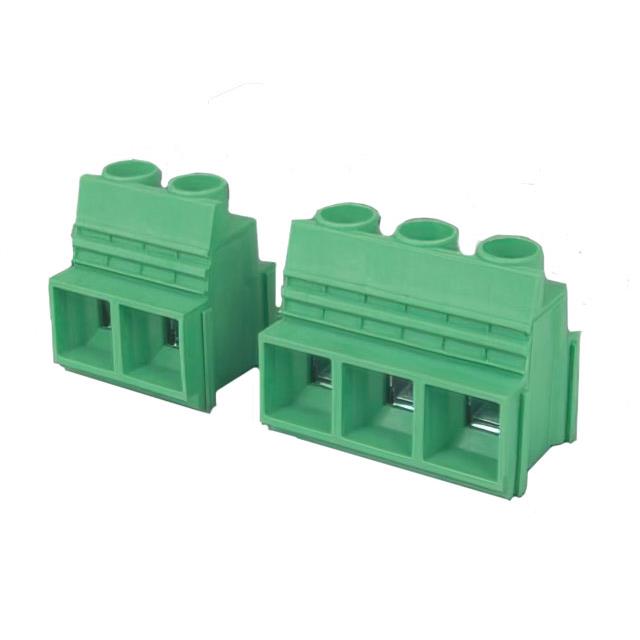

Amphenol Anytek VP0385540000G	3	2.15 Nm	19 Lb-In	Interlocking (Side)	65 A	Thermoplastic	Through Hole	Green	M4.5	-40 °C	115 °C	1	Screw - Rising Cage Clamp	Horizontal with Board	12.7 mm	0.5 in	20 AWG	6 AWG	Steel Zinc Plated	600 V	Steel Zinc Plated
Amphenol Anytek VP0365880000G	3	2.15 Nm	19 Lb-In	Interlocking (Side)	65 A	Thermoplastic	Through Hole	Gray	M4.5	-40 °C	115 °C	1	Screw - Rising Cage Clamp	Horizontal with Board	10.16 mm	0.4 in	20 AWG	6 AWG	Steel Zinc Plated	300 V	Steel Zinc Plated
Amphenol Anytek VP0365870000G	3	2.15 Nm	19 Lb-In	Interlocking (Side)	65 A	Thermoplastic	Through Hole	Gray	M4.5	-40 °C	115 °C	1	Screw - Rising Cage Clamp	Horizontal with Board	10.16 mm	0.4 in	20 AWG	6 AWG	Steel Zinc Plated	300 V	Steel Zinc Plated
Amphenol Anytek VP0385880000G	3	2.15 Nm	19 Lb-In	Interlocking (Side)	65 A	Thermoplastic	Through Hole	Gray	M4.5	-40 °C	115 °C	1	Screw - Rising Cage Clamp	Horizontal with Board	12.7 mm	0.5 in	20 AWG	6 AWG	Steel Zinc Plated	300 V	Steel Zinc Plated
