SWH.00.250 Series
Manufacturer: LEMO
Beta
⌘K
CONN ADAPT JACK-JACK NIM-CAMAC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Mating Cycles | Includes | Body Finish | Mounting Feature | Center Gender | Adapter Type | Impedance | Adapter Series [Max] | Adapter Series [Min] | Ingress Protection | Fastening Type | Fastening Type | Convert From (Adapter End) | Style | Mounting Type | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

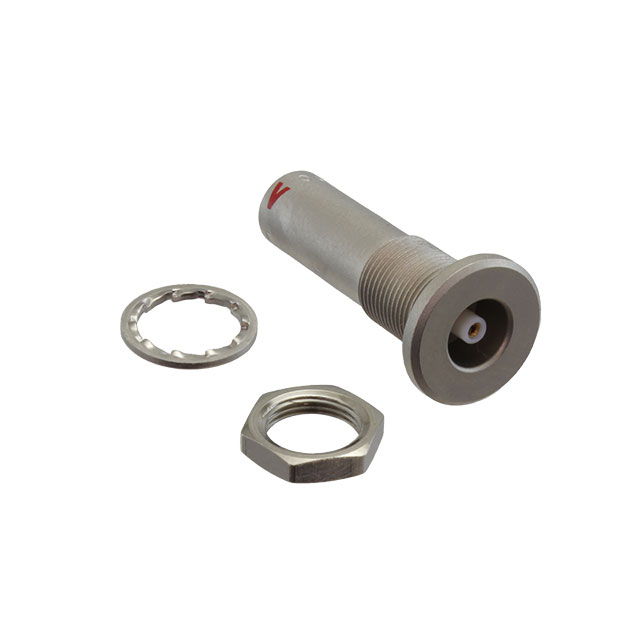

 LEMO | -20 ░C | 100 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 | 1 Connector 1 Lockwasher 1 Nut | Chrome | Bulkhead | Female to Female | Jack to Jack | 50 Ohms | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 | IP50 - Dust Protected | Push-Pull | Push-Pull | NIM-CAMAC CD/N 549 Jack Female Socket | Straight | Panel Mount | Same Series |

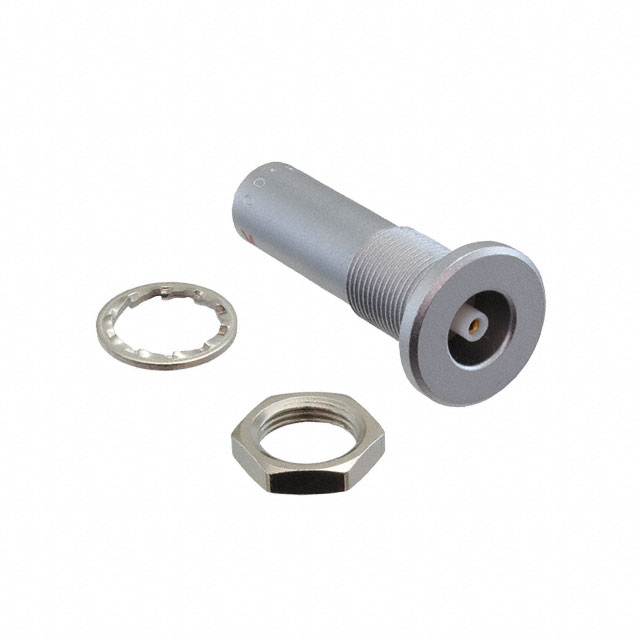

 LEMO | -20 ░C | 100 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 | 1 Connector 1 Lockwasher 1 Nut | Nickel | Bulkhead | Female to Female | Jack to Jack | 50 Ohms | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549 | IP50 - Dust Protected | Push-Pull | Push-Pull | NIM-CAMAC CD/N 549 Jack Female Socket | Straight | Panel Mount | Same Series |
