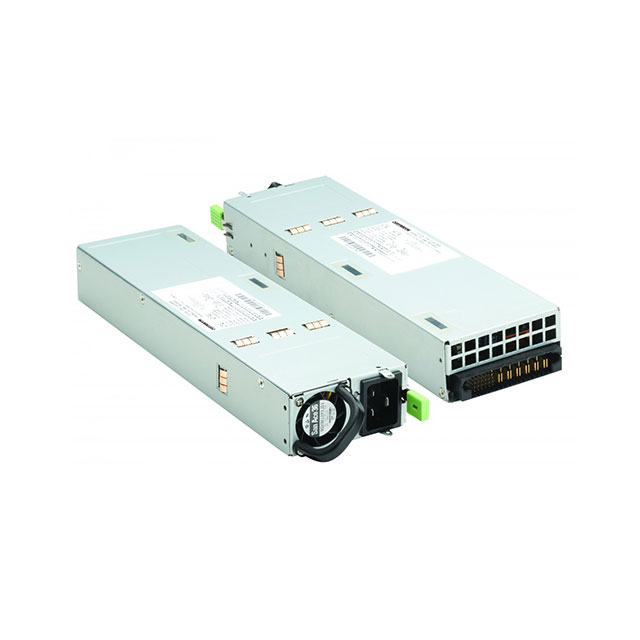

DS1200 Series

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 12V 100A 1200W

Part	Features	Number of Outputs	Type	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1	Efficiency	Approval Agency	Current - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
ARTESYN / Advanced Energy DS1200HE-3	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	1	Front End	Rack Mount	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	70 °C	-10 °C	ITE (Commercial)	90 VAC 180 VAC	140 VAC 264 VAC	1200 W	12 V	91 %	CE	100 A
ARTESYN / Advanced Energy DS1200DC-3-005		1	Front End	Rack Mount	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	50 °C	-10 °C	ITE (Commercial)			1200 W	12 V	91 %	CCC CE cUL EN60950 NEMKO UL		-40 V	100 A	-72 V
ARTESYN / Advanced Energy DS1200HE-3-003	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	1	Front End	Rack Mount	1.57 "	3.2 "	39.9 mm	11 in	279.4 mm	81.3 mm	70 °C	-10 °C	ITE (Commercial)	90 VAC	264 VAC	1200 W	12 V	94 %	CB	100 A
