147747 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

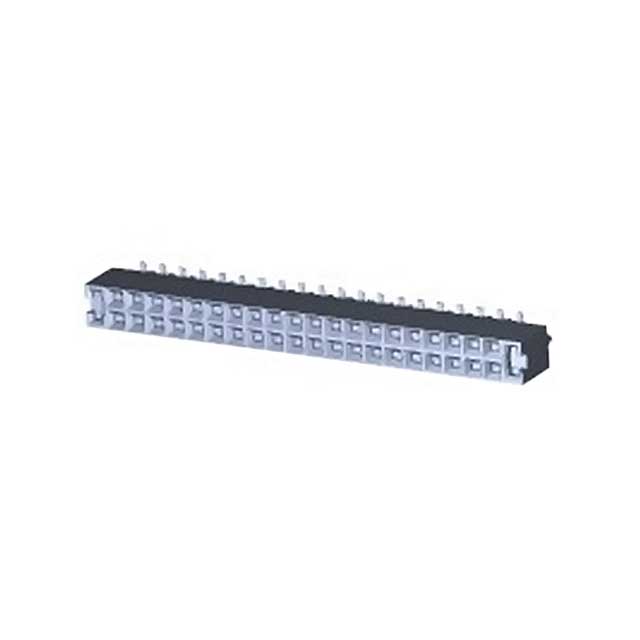

CONN RCPT 40POS 0.1 GOLD SMD

Part	Insulation Material	Contact Type	Number of Rows	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Style	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Features	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Number of Positions Loaded	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions
TE Connectivity Raychem Cable Protection 2-147747-0	Polyester Glass Filled	Female Socket	2	Gold	Surface Mount	2 A	30 Áin	0.76 Ám	Solder	Board to Board Cable	0.1 in	2.54 mm	Tin-Lead	150 Áin	3.81 Ám	Square	Push-Pull	Board Lock Pick and Place	Black	2.54 mm	0.1 in	125 °C	-65 ░C	40	Phosphor Bronze	All	Receptacle Bottom or Top Entry	6.73 mm	0.265 in
TE Connectivity Raychem Cable Protection 6-147747-2	Polyester Glass Filled	Female Socket	2	Gold	Surface Mount	2 A	30 Áin	0.76 Ám	Solder	Board to Board Cable	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	Square	Push-Pull	Board Lock Pick and Place	Black	2.54 mm	0.1 in	125 °C	-65 ░C	24	Phosphor Bronze	All	Receptacle Bottom or Top Entry	6.73 mm	0.265 in	UL94 V-0
TE Connectivity Raychem Cable Protection 6-147747-7	Polyester Glass Filled	Female Socket	2	Gold	Surface Mount	2 A	30 Áin	0.76 Ám	Solder	Board to Board Cable	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	Square	Push-Pull	Board Lock Pick and Place	Black	2.54 mm	0.1 in	125 °C	-65 ░C	34	Phosphor Bronze	All	Receptacle Bottom or Top Entry	6.73 mm	0.265 in	UL94 V-0
TE Connectivity Raychem Cable Protection 5-147747-8	Polyester Glass Filled	Female Socket	2	Gold	Surface Mount	2 A	30 Áin	0.76 Ám	Solder	Board to Board Cable	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	Square	Push-Pull	Board Lock Pick and Place	Black	2.54 mm	0.1 in	125 °C	-65 ░C		Phosphor Bronze	All	Receptacle Bottom or Top Entry	6.73 mm	0.265 in	UL94 V-0	16
TE Connectivity Raychem Cable Protection 6-147747-0	Polyester Glass Filled	Female Socket	2	Gold	Surface Mount	2 A	30 Áin	0.76 Ám	Solder	Board to Board Cable	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	Square	Push-Pull	Board Lock Pick and Place	Black	2.54 mm	0.1 in	125 °C	-65 ░C	20	Phosphor Bronze	All	Receptacle Bottom or Top Entry	6.73 mm	0.265 in	UL94 V-0
TE Connectivity Raychem Cable Protection 1-147747-5	Polyester Glass Filled	Female Socket	2	Gold	Surface Mount	2 A	30 Áin	0.76 Ám	Solder	Board to Board Cable	0.1 in	2.54 mm	Tin-Lead	150 Áin	3.81 Ám	Square	Push-Pull	Board Lock Pick and Place	Black	2.54 mm	0.1 in	125 °C	-65 ░C	30	Phosphor Bronze	All	Receptacle Bottom or Top Entry	6.73 mm	0.265 in
TE Connectivity Raychem Cable Protection 5-147747-5	Polyester Glass Filled	Female Socket	2	Gold	Surface Mount	2 A	30 Áin	0.76 Ám	Solder	Board to Board Cable	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	Square	Push-Pull	Board Lock Pick and Place	Black	2.54 mm	0.1 in	125 °C	-65 ░C	10	Phosphor Bronze	All	Receptacle Bottom or Top Entry	6.73 mm	0.265 in	UL94 V-0
