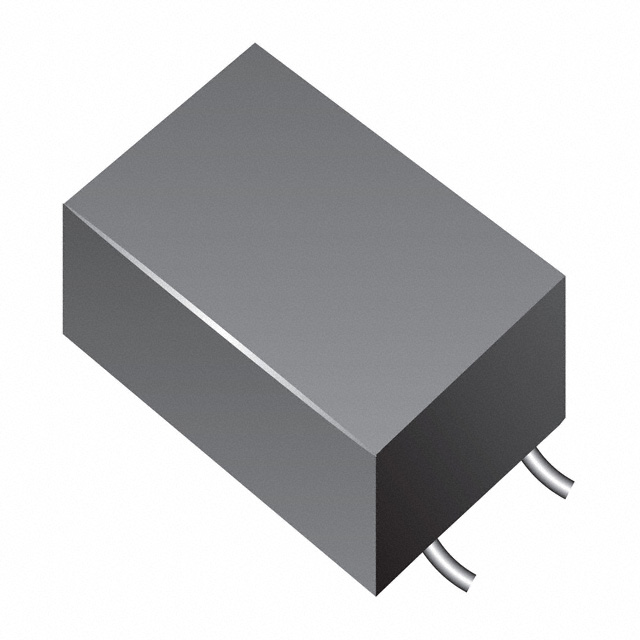

DR221 Series

Catalog

CMC 11UH 250MA 2LN SMD

Part	Current Rating (Max) [Max]	Package / Case	Height (Max) [z]	Height (Max) [z]	Mounting Type	Voltage Rating - AC	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max)	Filter Type	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]
Bourns Inc. DR221-113AE	250 mA	Horizontal 4 Flat Lead	0.13 in	3.3 mm	Surface Mount	100 V	2	125 °C	-40 C	50 VDC	0.13 in	0.197 in	5 mm	3.3 mm	180 mOhm	Signal Line	11 µH
Bourns Inc. DR221-474AE	100 mA	Horizontal 4 Flat Lead	0.13 in	3.3 mm	Surface Mount	100 V	2	125 °C	-40 C	50 VDC	0.13 in	0.197 in	5 mm	3.3 mm		Signal Line	10 kHz 470 µH	350 mOhm
