TAS5760M-Q1 Series

55-W stereo, 114-W mono, 4.5- to 26.4-V, digital input Class-D audio amplifier w/ integrated HP

Catalog

55-W stereo, 114-W mono, 4.5- to 26.4-V, digital input Class-D audio amplifier w/ integrated HP

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Package / Case	Package / Case [custom]	Type	Features	Max Output Power x Channels @ Load	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [x]	Package / Case [y]	Utilized IC / Part	Board Type	Supplied Contents	Qualification	Grade
Texas Instruments TAS5760MDDCAR	48-HTSSOP	85 C	-25 °C	Surface Mount	48-PowerTFSOP	0.24 in	6.1 mm	Class D	Depop	55.2 W 63.5 W	1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 26.4 V	2.8 V 4.5 V
Texas Instruments TAS5760LDAP	32-HTSSOP	85 C	-25 °C	Surface Mount	32-PowerTSSOP			Class D	Depop		1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 16.5 V	2.8 V 4.5 V	0.24 in	6.1 mm

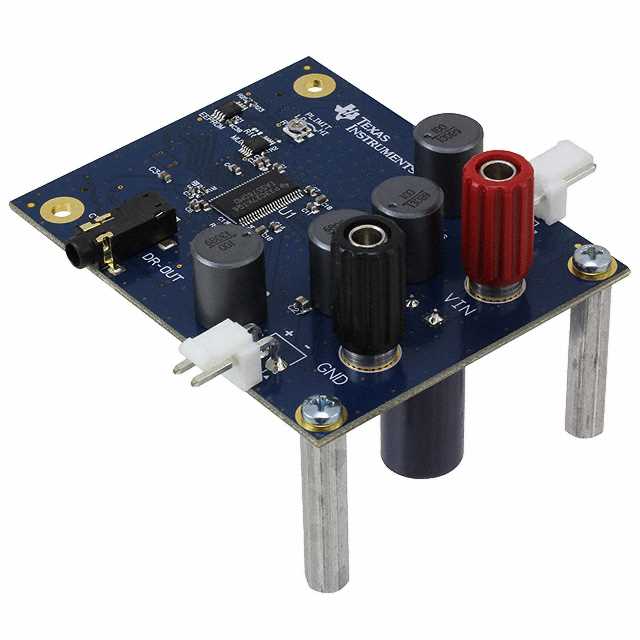

Texas Instruments TAS5760XXEVM										55.2 W 114.7 W	1-Channel (Mono) or 2-Channel (Stereo)	26.4 V	4.5 V			TAS5760	Fully Populated	Board(s)
Texas Instruments TAS5760MTDAPRQ1	32-HTSSOP	105 °C	-40 °C	Surface Mount	32-PowerTSSOP			Class D		55.2 W 63.5 W	1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 26.4 V	3 V 4.5 V	0.24 in	6.1 mm				AEC-Q100	Automotive
Texas Instruments TAS5760LDCAR	48-HTSSOP	85 C	-25 °C	Surface Mount	48-PowerTFSOP	0.24 in	6.1 mm	Class D	Depop		1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 16.5 V	2.8 V 4.5 V
Texas Instruments TAS5760LDAPR	32-HTSSOP	85 C	-25 °C	Surface Mount	32-PowerTSSOP			Class D	Depop		1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 16.5 V	2.8 V 4.5 V	0.24 in	6.1 mm
Texas Instruments TAS5760MDCAR	48-HTSSOP	85 C	-25 °C	Surface Mount	48-PowerTFSOP	0.24 in	6.1 mm	Class D	Depop	55.2 W 63.5 W	1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 26.4 V	2.8 V 4.5 V
Texas Instruments TAS5760MDDCA	48-HTSSOP	85 C	-25 °C	Surface Mount	48-PowerTFSOP	0.24 in	6.1 mm	Class D	Depop	55.2 W 63.5 W	1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 26.4 V	2.8 V 4.5 V
Texas Instruments TAS5760MTDAPQ1	32-HTSSOP	105 °C	-40 °C	Surface Mount	32-PowerTSSOP			Class D		55.2 W 63.5 W	1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 26.4 V	3 V 4.5 V	0.24 in	6.1 mm				AEC-Q100	Automotive
Texas Instruments TAS5760MDCA	32-HTSSOP	85 C	-25 °C	Surface Mount	32-PowerTSSOP			Class D	Depop	55.2 W 63.5 W	1-Channel (Mono) or 2-Channel (Stereo)	3.63 V 26.4 V	2.8 V 4.5 V	0.24 in	6.1 mm

Catalog

55-W stereo, 114-W mono, 4.5- to 26.4-V, digital input Class-D audio amplifier w/ integrated HP

Key Features

• Qualified for Automotive ApplicationsTemperature grade 1: –40°C to +125°CMinimum Supply Voltage down to 4.5 VAdjustable Switching FrequenciesSelectable Hardware or Software ControlAudio Performance (PVDD = 12 V, RSPK= 8 Ω, SPK_GAIN[1:0] Pins = 00)Idle Channel Noise = 66 µVrms (A-Wtd)THD+N = 0.02% (at 1 W, 1 kHz)SNR = 99.7 dB A-Wtd (Ref. to THD+N = 1%)Audio I/O Configuration:Single Stereo I²S InputStereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation32, 44.1, 48, 88.2, 96 kHz Sample RatesGeneral Operational Features:Integrated Digital Output ClipperProgrammable I²C Address (1101100[R/W] or 1101101[R/W])Closed-Loop Amplifier ArchitectureRobustness Features:Clock Error, DC, and Short-Circuit ProtectionOvertemperature and Programmable Overcurrent ProtectionQualified for Automotive ApplicationsTemperature grade 1: –40°C to +125°CMinimum Supply Voltage down to 4.5 VAdjustable Switching FrequenciesSelectable Hardware or Software ControlAudio Performance (PVDD = 12 V, RSPK= 8 Ω, SPK_GAIN[1:0] Pins = 00)Idle Channel Noise = 66 µVrms (A-Wtd)THD+N = 0.02% (at 1 W, 1 kHz)SNR = 99.7 dB A-Wtd (Ref. to THD+N = 1%)Audio I/O Configuration:Single Stereo I²S InputStereo Bridge Tied Load (BTL) or Mono Parallel Bridge Tied Load (PBTL) Operation32, 44.1, 48, 88.2, 96 kHz Sample RatesGeneral Operational Features:Integrated Digital Output ClipperProgrammable I²C Address (1101100[R/W] or 1101101[R/W])Closed-Loop Amplifier ArchitectureRobustness Features:Clock Error, DC, and Short-Circuit ProtectionOvertemperature and Programmable Overcurrent Protection

Description

The TAS5760LD is a stereo I2S input device which includes hardware and software (I²C) control modes, integrated digital clipper, several gain options, and a wide power supply operating range to enable use in a multitude of applications. The TAS5760LD operates with a nominal supply voltage from 4.5 to 15 VDC. The device has an integrated DirectPath™ headphone amplifier and line driver to increase system level integration and reduce total solution costs. An optimal mix of thermal performance and device cost is provided in the 120-mΩ RDS(ON)of the output MOSFETs. Additionally, a thermally enhanced 48-Pin TSSOP provides excellent operation in the elevated ambient temperatures found in modern consumer electronic devices. The entire TAS5760xx family is pin-to-pin compatible in the 48-Pin TSSOP package. Alternatively, to achieve the smallest possible solutions size for applications where pin-to-pin compatibility and a headphone or line driver are not required, a 32-Pin TSSOP package is offered for the TAS5760M and TAS5760L devices. The I2C register map in all of the TAS5760xx devices are identical, to ensure low development overhead when choosing between devices based upon system-level requirements. The TAS5760LD is a stereo I2S input device which includes hardware and software (I²C) control modes, integrated digital clipper, several gain options, and a wide power supply operating range to enable use in a multitude of applications. The TAS5760LD operates with a nominal supply voltage from 4.5 to 15 VDC. The device has an integrated DirectPath™ headphone amplifier and line driver to increase system level integration and reduce total solution costs. An optimal mix of thermal performance and device cost is provided in the 120-mΩ RDS(ON)of the output MOSFETs. Additionally, a thermally enhanced 48-Pin TSSOP provides excellent operation in the elevated ambient temperatures found in modern consumer electronic devices. The entire TAS5760xx family is pin-to-pin compatible in the 48-Pin TSSOP package. Alternatively, to achieve the smallest possible solutions size for applications where pin-to-pin compatibility and a headphone or line driver are not required, a 32-Pin TSSOP package is offered for the TAS5760M and TAS5760L devices. The I2C register map in all of the TAS5760xx devices are identical, to ensure low development overhead when choosing between devices based upon system-level requirements.
