ODL4 Series

Catalog

DIN TERM SCREW 2 LEVEL OFFSET 35

Part	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Color	Voltage - IEC	Number of Positions	Current - IEC	Voltage - UL	Current - UL	Termination Style	Number of Levels	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Terminal Width	Type	Material - Insulation	Stripping Length
Altech Corporation ODL4U/Y	4 mm²	0.2 mm²	Yellow	800 V	4	32 A	600 V	35 A	Screw	2	22 AWG	10 AWG	6 mm	Feed Through

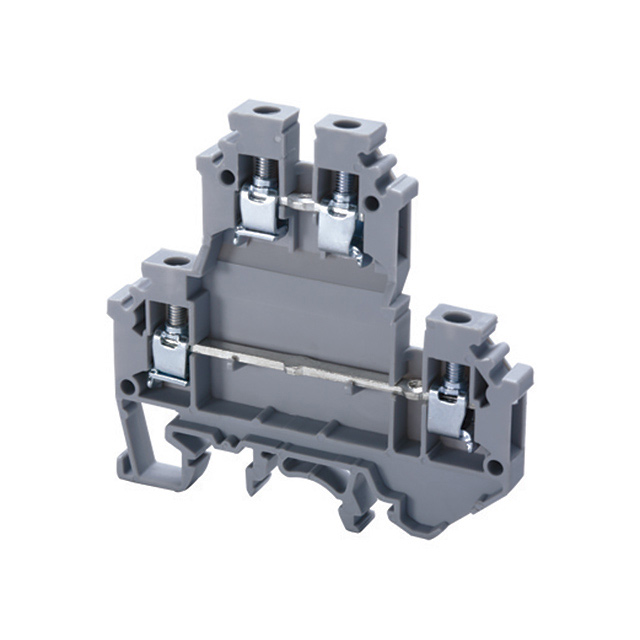

Altech Corporation ODL4U	4 mm²	0.2 mm²	Gray	800 V	4	32 A	600 V	35 A	Screw	2	22 AWG	10 AWG	6 mm	Feed Through	Nylon 6/6 PA66 Polyamide	9 mm
Altech Corporation ODL4U/BU	4 mm²	0.2 mm²	Blue	800 V	4	32 A	600 V	35 A	Screw	2	22 AWG	10 AWG	6 mm	Feed Through
Altech Corporation ODL4U/O
Altech Corporation ODL4U/R	4 mm²	0.2 mm²	Red	800 V	4	32 A	600 V	35 A	Screw	2	22 AWG	10 AWG	6 mm	Feed Through
Altech Corporation ODL4U/BL	4 mm²	0.2 mm²	Black	800 V	4	32 A	600 V	35 A	Screw	2	22 AWG	10 AWG	6 mm	Feed Through
