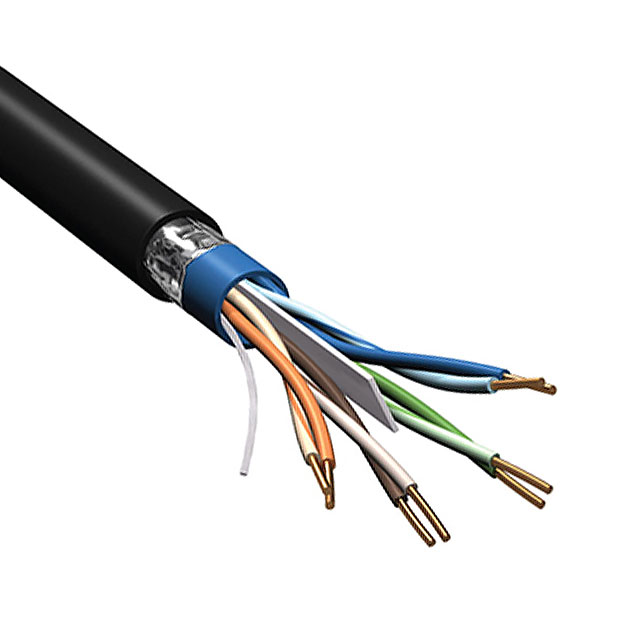

7953A Series

Catalog

CABLE CAT6 8COND 23AWG BLK 100'

Part	Shield Coverage	Shield Material	Length	Length	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Conductor Strand	Usage	Features	Jacket Color	Shield Type	Length [x]	Length [x]	Wire Gauge	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material
Belden Inc. 7953A 0101000	100 %	Aluminum	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Copper Bare	-40 C	75 ░C	8	0.03 in	0.762 mm	UL Style CMR	Solid	Network	Drain Wire Oil Resistant UV Resistant	Black	Foil	100 ft	30.5 m	23 AWG	Multi-Pair Cat6	Polypropylene (PP)	0.335 in	8.51 mm	Poly-Vinyl Chloride (PVC)
Belden Inc. 7953A 1NH1000	100 %	Aluminum	304.8 m	1000 ft	Copper Bare	-40 C	75 ░C	8	0.03 in	0.762 mm	UL Style 21047	Solid	Industrial Network	Drain Wire Oil Resistant Rip Cord UV Resistant	Teal	Foil			23 AWG	Multi-Pair Cat6	Polypropylene (PP)	0.335 in	8.51 mm	Poly-Vinyl Chloride (PVC)

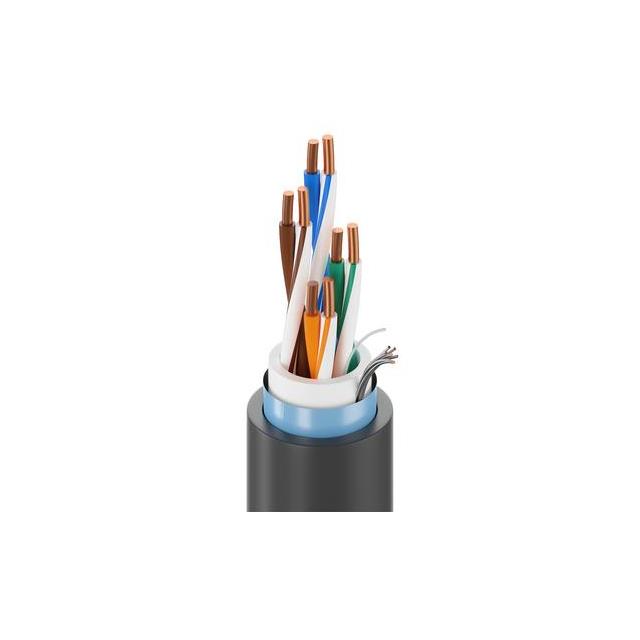

Belden Inc. 7953A 0021000	100 %	Aluminum	304.8 m	1000 ft	Copper Bare	-40 C	75 ░C	8	0.03 in	0.762 mm	UL Style 21047	Solid	Industrial Network	Drain Wire Oil Resistant Rip Cord UV Resistant	Red	Foil			23 AWG	Multi-Pair Cat6	Polypropylene (PP)	0.335 in	8.51 mm	Poly-Vinyl Chloride (PVC)
Belden Inc. 7953A 0061000	100 %	Aluminum	304.8 m	1000 ft	Copper Bare	-40 C	75 ░C	8	0.03 in	0.762 mm	UL Style 21047	Solid	Industrial Network	Drain Wire Oil Resistant Rip Cord UV Resistant	Blue	Foil			23 AWG	Multi-Pair Cat6	Polypropylene (PP)	0.335 in	8.51 mm	Poly-Vinyl Chloride (PVC)
Belden Inc. 7953A 0105000	100 %	Aluminum			Copper Bare	-40 C	75 ░C	8	0.03 in	0.762 mm	UL Style 21047	Solid	Industrial Network	Drain Wire Oil Resistant Rip Cord UV Resistant	Black	Foil			23 AWG	Multi-Pair Cat6	Polypropylene (PP)	0.335 in	8.51 mm	Poly-Vinyl Chloride (PVC)
Belden Inc. 7953A 0081000	100 %	Aluminum	304.8 m	1000 ft	Copper Bare	-40 C	75 ░C	8	0.03 in	0.762 mm	UL Style 21047	Solid	Industrial Network	Drain Wire Oil Resistant Rip Cord UV Resistant	Gray	Foil			23 AWG	Multi-Pair Cat6	Polypropylene (PP)	0.335 in	8.51 mm	Poly-Vinyl Chloride (PVC)
