45164 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

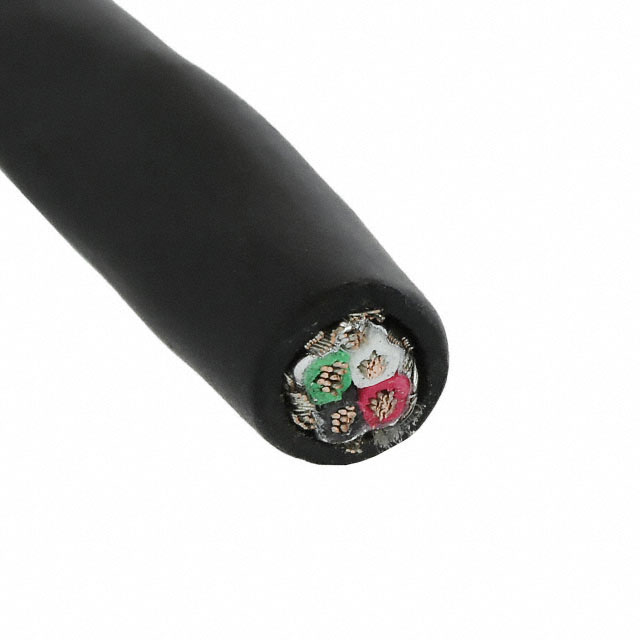

CABLE 4COND 18AWG BLK SHLD 1000'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Material | Jacket (Insulation) Material | Conductor Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Voltage | Shield Coverage | Length | Length | Cable Type | Shield Type | Conductor Insulation | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.313 " | 7.95 mm | Copper Tinned Suprashield® | Thermoplastic Elastomer (TPE) | Copper Tinned | 18 AWG | 1.143 mm | 0.045 in | Biological Compatibility Drain Wire Rip Cord | -50 °C | 125 °C | ISO 10993 | 300 V | 70 % 100 % | 1000 ft | 304.8 m | Multi-Conductor | Braid Foil | Thermoplastic Elastomer (TPE) | 4 | 16 | 30 AWG | Black |
