LMK03806 Series

Ultra-low jitter clock generator with 14 outputs

Catalog

Ultra-low jitter clock generator with 14 outputs

Part	Input	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency - Max [Max]	PLL	Divider/Multiplier	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]	Output	Number of Circuits	Mounting Type	Function	Primary Attributes	Contents	Utilized IC / Part	Type	Secondary Attributes	Supplied Contents
Texas Instruments LMK03806BISQ/NOPB	Crystal LVCMOS LVDS LVPECL	3.45 V	3.15 V	2.6 GHz	Yes with Bypass	Yes/No	64-WFQFN Exposed Pad	64-WQFN (9x9)	85 °C	-40 °C	1:14	LVCMOS LVDS LVPECL	1	Surface Mount
Texas Instruments LMK03806BISQE/NOPB	Crystal LVCMOS LVDS LVPECL	3.45 V	3.15 V	2.6 GHz	Yes with Bypass	Yes/No	64-WFQFN Exposed Pad	64-WQFN (9x9)	85 °C	-40 °C	1:14	LVCMOS LVDS LVPECL	1	Surface Mount

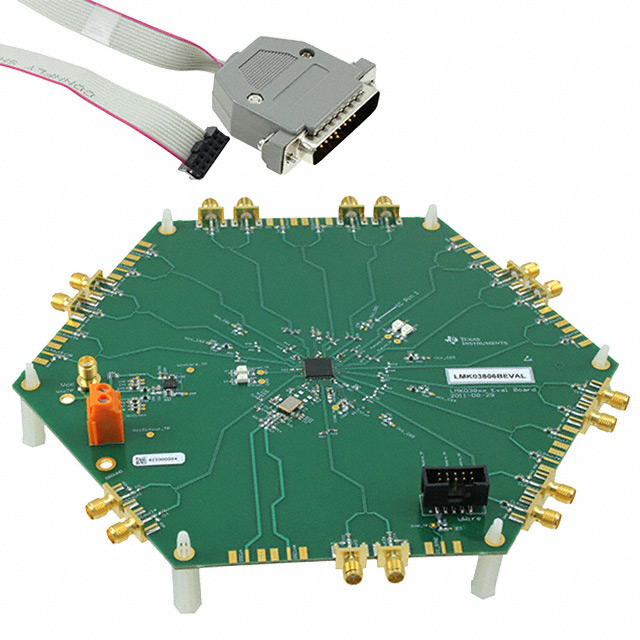

Texas Instruments LMK03806BEVAL/NOPB															Clock Generator	14	Board(s) Cable(s)	LMK03806	Timing	Ultra Low Jitter	Board(s) Cable(s)

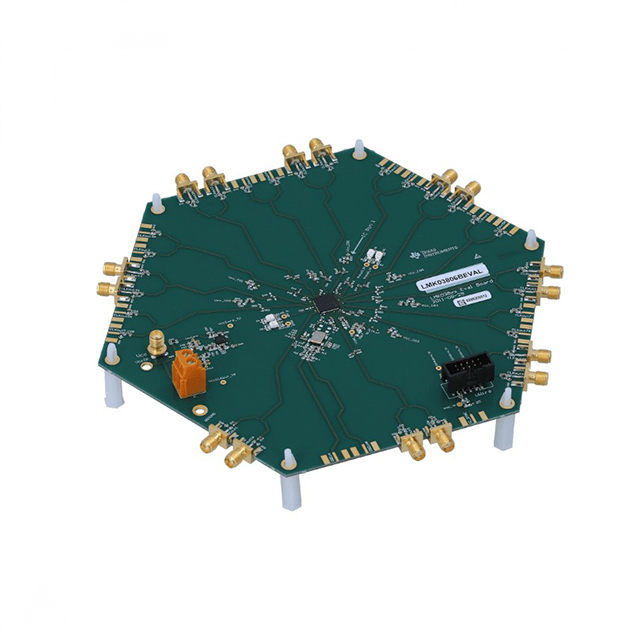

Texas Instruments LMK03806BEVAL															Clock Generator	14		LMK03806	Timing	Ultra Low Jitter	Board(s) Cable(s)

Catalog

Ultra-low jitter clock generator with 14 outputs

Key Features

• High performance, ultra low jitter clock generatorLow jitter:< 50-fs jitter (1.875 MHz – 20 MHz) at 312.5-MHz output frequency< 150-fs jitter (12 kHz – 20 MHz) at 312.5-MHz output frequencyGenerates multiple clocks from a low-cost crystal or external clock14 outputs with programmable output format (LVDS, LVPECL, CMOS)Up to 8 unique output frequencies.Industrial temperature range: –40°C to 85°CTunable VCO frequency: 2.37 GHz – 2.6 GHzProgrammable dividers to generate multiple clocks from a low-cost crystal.3.15-V to 3.45-V operationHigh performance, ultra low jitter clock generatorLow jitter:< 50-fs jitter (1.875 MHz – 20 MHz) at 312.5-MHz output frequency< 150-fs jitter (12 kHz – 20 MHz) at 312.5-MHz output frequencyGenerates multiple clocks from a low-cost crystal or external clock14 outputs with programmable output format (LVDS, LVPECL, CMOS)Up to 8 unique output frequencies.Industrial temperature range: –40°C to 85°CTunable VCO frequency: 2.37 GHz – 2.6 GHzProgrammable dividers to generate multiple clocks from a low-cost crystal.3.15-V to 3.45-V operation

Description

The LMK03806 device is a high-performance, ultra low-jitter, multi-rate clock generator capable of synthesizing 8 different frequencies on 14 outputs at frequencies of up to 2.6 GHz. Each output clock is programmable in LVDS, LVPECL or LVCMOS format. The LMK03806 integrates a high-performance integer-N PLL, low-noise VCO, and programmable output dividers to generate multiple reference clocks for SONET, Ethernet, Fiber Channel, XAUI, Backplane, PCIe, SATA, and Network Processors from a low-cost crystal. The LMK03806 device is a high-performance, ultra low-jitter, multi-rate clock generator capable of synthesizing 8 different frequencies on 14 outputs at frequencies of up to 2.6 GHz. Each output clock is programmable in LVDS, LVPECL or LVCMOS format. The LMK03806 integrates a high-performance integer-N PLL, low-noise VCO, and programmable output dividers to generate multiple reference clocks for SONET, Ethernet, Fiber Channel, XAUI, Backplane, PCIe, SATA, and Network Processors from a low-cost crystal.
