VBUS05 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
TVS DIODE 5.5VWM 18VC LLP1006-3L
| Part | Applications | Capacitance @ Frequency | Bidirectional Channels [custom] | Power - Peak Pulse | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Reverse Standoff (Typ) | Supplier Device Package | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] | Power Line Protection | Mounting Type | Type | Voltage - Clamping (Max) @ Ipp [Max] | Package / Case | Bidirectional Channels | Qualification | Voltage - Clamping (Max) @ Ipp | Grade | Package / Case | Unidirectional Channels [custom] | Voltage - Reverse Standoff (Typ) [Min] | Current - Peak Pulse (10/1000s) | Current - Peak Pulse (10/1000s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay General Semiconductor - Diodes Division | HDMI USB | 0.35 pF | 1 | 65 W | 125 ¯C | -55 °C | 5.5 V | LLP1006-3L | 3.6 A | 7.5 V | Surface Mount | Zener | 18 V | 3-XFDFN | ||||||||||

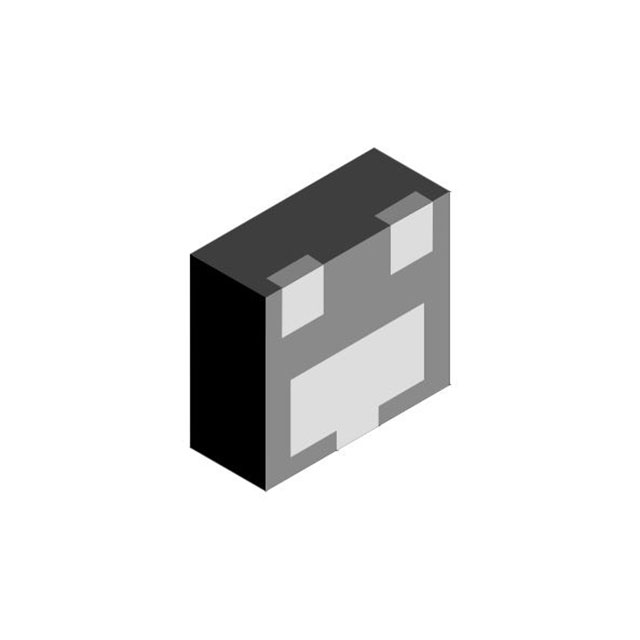

 Vishay General Semiconductor - Diodes Division | 0.37 pF | 60 W | 150 °C | -55 °C | 5.5 V | DFN1110-3A | 3.4 A | 7.5 V | Surface Mount Wettable Flank | Zener | 3-XDFN Exposed Pad | 2 | AEC-Q101 | 27 V | Automotive | |||||||||
Vishay General Semiconductor - Diodes Division | 0.37 pF | 60 W | 150 °C | -55 °C | 5.5 V | DFN1110-3A | 3.4 A | 7.5 V | Surface Mount Wettable Flank | Zener | 3-XDFN Exposed Pad | 2 | AEC-Q101 | 27 V | Automotive | |||||||||
Vishay General Semiconductor - Diodes Division | 0.29 pF | 1 | 45 W | 150 °C | -55 °C | 5.5 V | CLP0603 | 2.5 A | 6 V | Surface Mount | Zener | 18 V | 0201 | AEC-Q101 | Automotive | 0603 Metric | ||||||||
 Vishay General Semiconductor - Diodes Division | General Purpose | 0.33 pF | 1 | 34 W | 125 ¯C | -40 °C | 5.5 V | LLP1006-2M | 7 V | Surface Mount | Zener | 17 V | SOD-882 | |||||||||||
 Vishay General Semiconductor - Diodes Division | USB OTG | 36 W | 125 ¯C | -40 °C | LLP1713-9L | 3 A | 6.5 V | Surface Mount | Steering | 18 V | 8-UFDFN Exposed Pad | 3 | 5.5 V | |||||||||||
 Vishay General Semiconductor - Diodes Division | HDMI USB | 0.36 pF | 1 | 90 W | 150 °C | -55 °C | 5.5 V | DFN1006-2B | 7 V | Surface Mount | Zener | 21 V | 0402 (1006 Metric) | 8/20s | 4 A |
