342A034 Series

Catalog

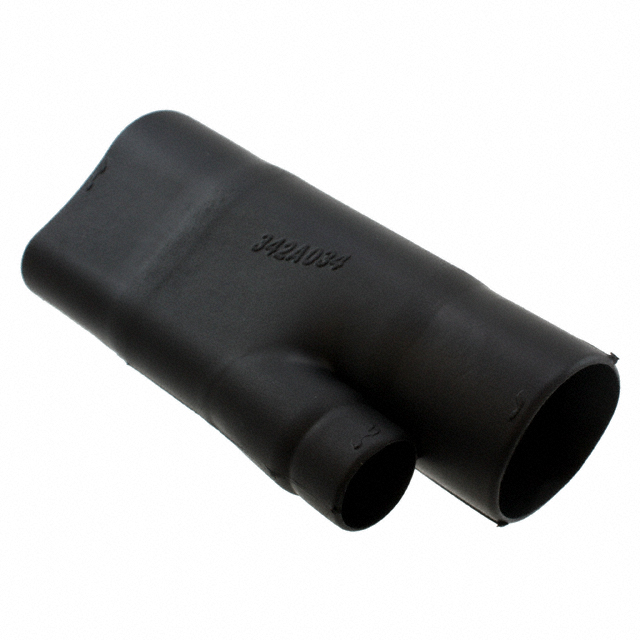

HEATSHRNK BOOT BRKOUT 45DEG SZ34

Part	Large Recovered Length	Large Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Shell Size - Insert	Small Recovered Length	Small Recovered Length [x]	Features	Total Length Recovered	Total Length Recovered	Color	Type	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Material	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 342A034-100/86-0	69.9 mm	2.752 in	13.69 mm	0.539 in	34	53.59 mm	2.11 in	Adhesive Coating	144.81 mm	5.701 in	Black	Boot Transition - Side Breakout 45°	6.1 mm	0.24 "	1.06 in	26.92 mm	Polyolefin (PO) Semi-Flexible	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 342A034-3/42-0	69.9 mm	2.752 in	13.69 mm	0.539 in	34	53.59 mm	2.11 in	Adhesive Coating	144.81 mm	5.701 in	Black	Boot Transition - Side Breakout 45°	6.1 mm	0.24 "	1.06 in	26.92 mm	Polyolefin (PO) Semi-Rigid	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 342A034-4-00-0	69.9 mm	2.752 in	13.69 mm	0.539 in	34	53.59 mm	2.11 in		144.81 mm	5.701 in	Black	Boot Transition - Side Breakout 45°	6.1 mm	0.24 "	1.06 in	26.92 mm	Polyolefin (PO) Flexible	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 342A034-25-0	69.9 mm	2.752 in	13.69 mm	0.539 in	34	53.59 mm	2.11 in		144.81 mm	5.701 in	Black	Boot Transition - Side Breakout 45°	6.1 mm	0.24 "	1.06 in	26.92 mm	Elastomer Semi-Rigid	0.52 in	13.21 mm
