39114 Series

Catalog

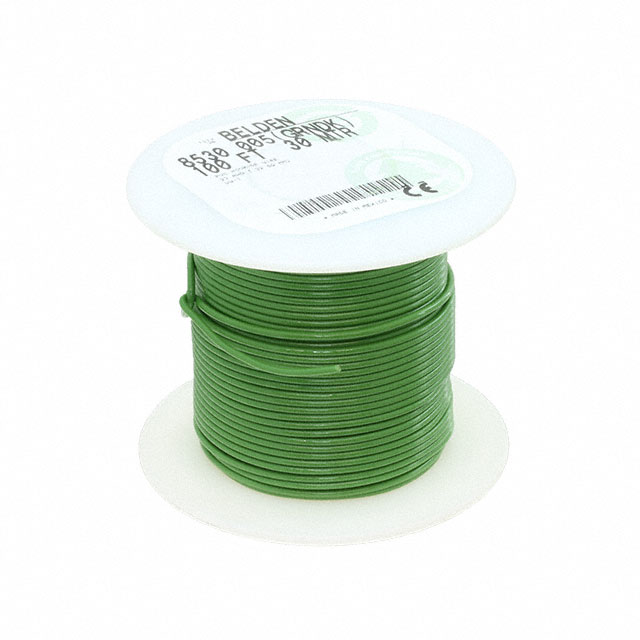

HOOK-UP STRND 14AWG GREEN

Part	Conductor Material	Jacket Color	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket (Insulation) Material	Ratings	Length [x]	Length [x]	Length	Length
Belden Inc. 39114 005100	Copper Tinned	Green	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028	100 ft	30.5 m
Belden Inc. 39114 008100	Copper Tinned	Gray	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028	100 ft	30.5 m
Belden Inc. 39114 1895000	Copper Tinned	Green Yellow Stripe	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028
Belden Inc. 39114 0075000	Copper Tinned	Violet	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028
Belden Inc. 39114 0021000	Copper Tinned	Red	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028			304.8 m	1000 ft
Belden Inc. 39114 0131000	Copper Tinned	Blue	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028			304.8 m	1000 ft
Belden Inc. 39114 013100	Copper Tinned	Blue	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028	100 ft	30.5 m
Belden Inc. 39114 0135000	Copper Tinned	Blue	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028
Belden Inc. 39114 1891000	Copper Tinned	Green Yellow Stripe	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028			304.8 m	1000 ft
Belden Inc. 39114 0055000	Copper Tinned	Green	600 V	-40 C	105 ░C	14.5 AWG	0.3 mm	0.012 in	41	30	0.097 in	2.46 mm	Hook-Up	Polyphenylene Oxide (PPO)	UL Style 11028
