FGL.3K Series

Manufacturer: LEMO

Catalog

CONN INLINE PLUG 3SKT SLD CUP

Part	Ingress Protection	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Material Flammability Rating	Contact Material	Orientation	Shell Material	Termination	Mounting Type	Shell Finish	Insert Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Fastening Type	Connector Type	Features	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Backshell Material, Plating	Color	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [Min]	Cable Opening [Max]

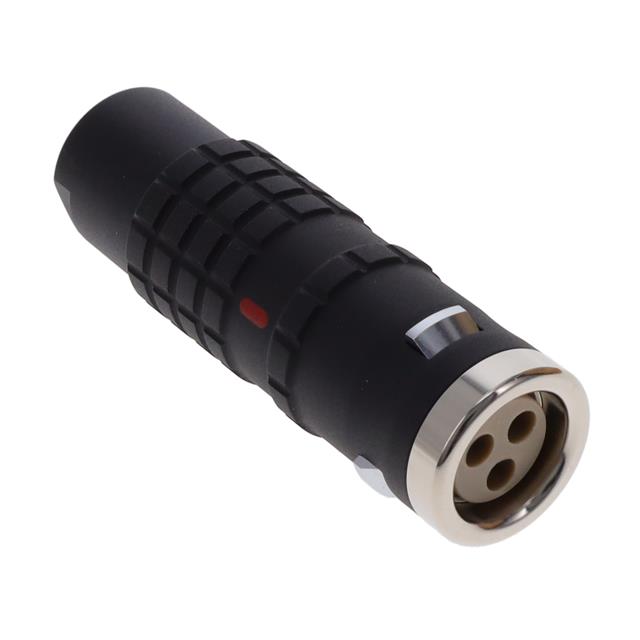

LEMO FGL.3K.303.KYMC10	IP68 - Dust Tight Waterproof	303	200 °C	-55 C	Shielded	UL94 V-0	Bronze	L	Brass	Crimp	Free Hanging (In-Line)	Chrome	Polyetheretherketone (PEEK)	10 mm	9.6 mm	0.394 in	0.378 in	Push-Pull	Plug Female Sockets	Backshell	Gold	Metal	25 A	Brass Chrome	Silver
LEMO FGL.3K.308.CLLC70	IP66 IP68	308	200 °C	-55 C	Shielded	UL94 V-0	Bronze	L	Brass		Free Hanging (In-Line)	Chrome	Polyetheretherketone (PEEK)			7 mm	0.26 "	Push-Pull	Plug Female Sockets	Backshell	Gold	Metal	13 A	Brass Chrome	Silver	8	1.5 Ám	59 Áin	6.6 mm	0.276 "
LEMO FGL.3K.304.CYMC11Z	IP66 IP68	304	200 °C	-55 C	Shielded	UL94 V-0	Bronze	L	Brass	Crimp	Free Hanging (In-Line)	Chrome	Polyetheretherketone (PEEK)			10.5 mm	0.398 in	Push-Pull	Plug Female Sockets	Backshell	Gold	Metal	19 A	Brass Chrome	Silver	4	1.5 Ám	59 Áin	10.1 mm	0.413 in
LEMO FGL.3K.310.CYMK15	IP66 IP68	310	200 °C	-55 C	Shielded	UL94 V-0	Bronze	L	Brass	Crimp	Free Hanging (In-Line)	Chrome	Polyetheretherketone (PEEK)			15 mm	0.555 in	Push-Pull	Plug Female Sockets	Backshell	Gold	Metal	12 Amps	Brass Chrome	Silver	10	1.5 Ám	59 Áin	14.1 mm	0.591 in
LEMO FGL.3K.312.CYMC90Z	IP66 IP68	312	200 °C	-55 C	Shielded	UL94 V-0	Bronze	L	Brass	Crimp	Free Hanging (In-Line)	Chrome	Polyetheretherketone (PEEK)				0.339 in 8.6 mm	Push-Pull	Plug Female Sockets	Backshell	Gold	Metal	9 A	Brass Chrome	Silver	12	1.5 Ám	59 Áin		0.354 in 9 mm
LEMO FGL.3K.302.CLLC11Z	IP66 IP68	302	200 °C	-55 C	Shielded	UL94 V-0	Bronze	L	Brass		Free Hanging (In-Line)	Chrome	Polyetheretherketone (PEEK)			10.5 mm	0.398 in	Push-Pull	Plug Female Sockets	Backshell	Gold	Metal	35 A	Brass Chrome	Silver	2	1.5 Ám	59 Áin	10.1 mm	0.413 in
