LCD350 Series

Catalog

CONN TERM RECT TONG 350 MCM #1/2

Part	Diameter - Ring ID	Diameter - Ring ID	Contact Material	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Finish	Terminal Style	Wire Gauge	Stud/Tab Size	Tab Thickness	Tab Thickness	Insulation	Color	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges	Terminal Type	Termination	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Length - Overall [x]	Length - Overall [x]
Panduit Corp LCD350-12F-X	13.46 mm	0.53 in	Copper	22.35 mm	0.88 in	0.7 in	17.78 mm	Electro-Tin	Two Stud Holes	350 MCM (kcmil)	0.5 Stud	4.32 mm	0.17 in	Non-Insulated	Red	Free Hanging (In-Line) Right Angle	1.28 "	32.51 mm	Rectangular Tongue	Barrel Crimp

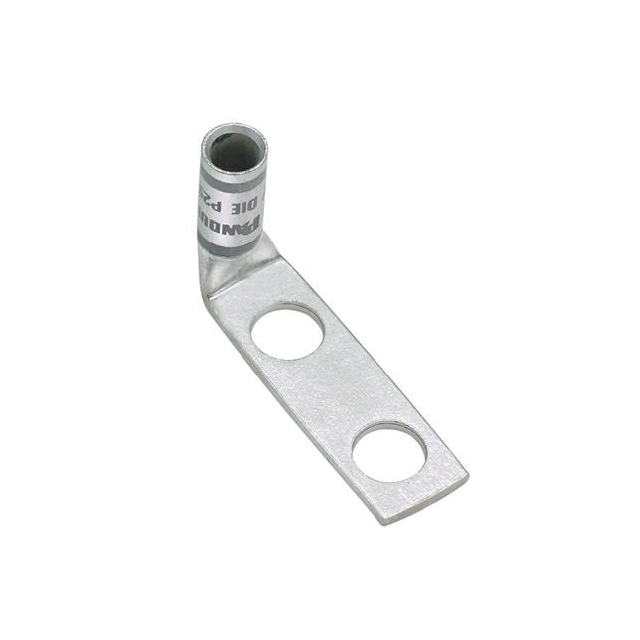

Panduit Corp LCD350-12EF-X	13.46 mm	0.53 in	Copper	22.35 mm	0.88 in	0.7 in	17.78 mm	Electro-Tin	Two Stud Holes	350 MCM (kcmil)	0.5 Stud	4.32 mm	0.17 in	Non-Insulated	Red	Free Hanging (In-Line) Right Angle	1.28 "	32.51 mm	Rectangular Tongue	Barrel Crimp
Panduit Corp LCD350-38DF-X			Copper	22.35 mm	0.88 in	0.7 in	17.78 mm	Electro-Tin	Two Stud Holes	350 MCM (kcmil)	0.375 Stud	4.32 mm	0.17 in	Non-Insulated	Red	Free Hanging (In-Line) Right Angle	1.28 "	32.51 mm	Rectangular Tongue	Barrel Crimp	10.41 mm	0.41 "

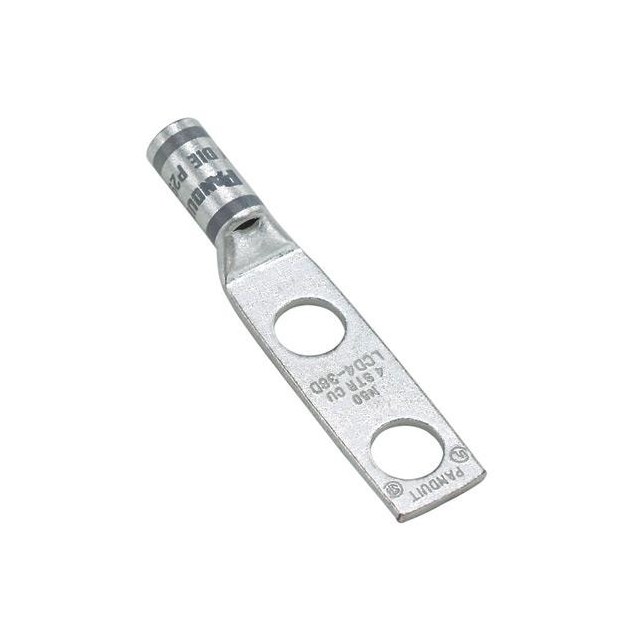

Panduit Corp LCD350-12E-X	13.46 mm	0.53 in	Copper	22.35 mm	0.88 in	0.7 in	17.78 mm	Electro-Tin	Two Stud Holes	350 MCM (kcmil)	0.5 Stud	4.32 mm	0.17 in	Non-Insulated	Red	Free Hanging (In-Line)	1.28 "	32.51 mm	Rectangular Tongue	Barrel Crimp			109.98 mm	4.33 "

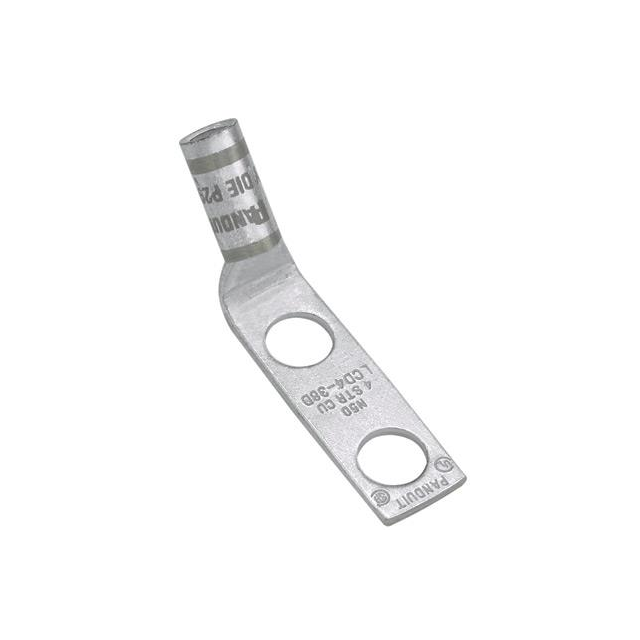

Panduit Corp LCD350-12EH-X	13.46 mm	0.53 in	Copper	22.35 mm	0.88 in	0.7 in	17.78 mm	Electro-Tin	Two Stud Holes	350 MCM (kcmil)	0.5 Stud	4.32 mm	0.17 in	Non-Insulated	Red	Free Hanging (In-Line)	1.28 "	32.51 mm	Rectangular Tongue	Barrel Crimp
