A750BG Series
Manufacturer: KEMET
Beta
⌘K

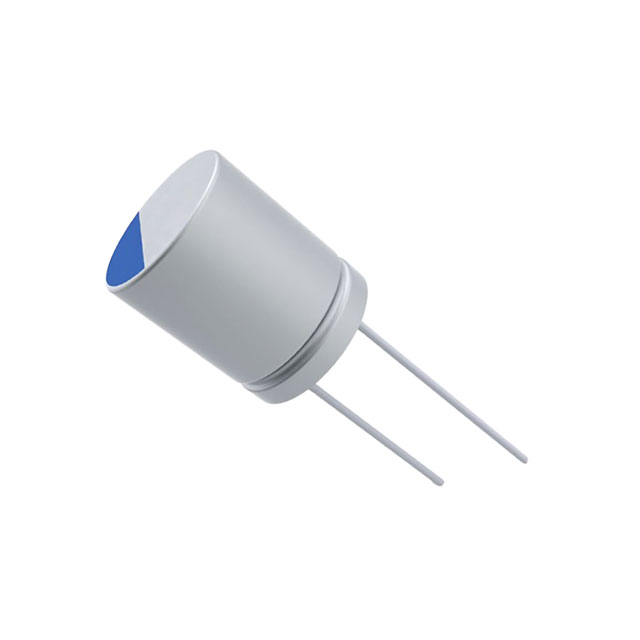

CAP ALUM POLY 220UF 20% 6.3V TH
| Part | Tolerance | ESR (Equivalent Series Resistance) | Lead Spacing | Lead Spacing | Capacitance | Voltage - Rated | Type | Mounting Type | Package / Case | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension [diameter] | Applications | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Ripple Current @ Low Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 20 % | 20 mOhms | 2 mm | 0.079 in | 220 µF | 6.3 VDC | Polymer | Through Hole | Can Radial | 2000 Hrs | 0.197 in | 5 mm | General Purpose | 8 mm | 0.315 in | 125 mA | -55 C | 105 ░C | 2.5 A |
