CA01J Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH ROCKER SPDT 15A 125V
| Part | Color - Actuator/Cap | Circuit | Switch Function | Termination Style | Mounting Type | Actuator Type | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Features | Actuator Marking | Voltage Rating - AC | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

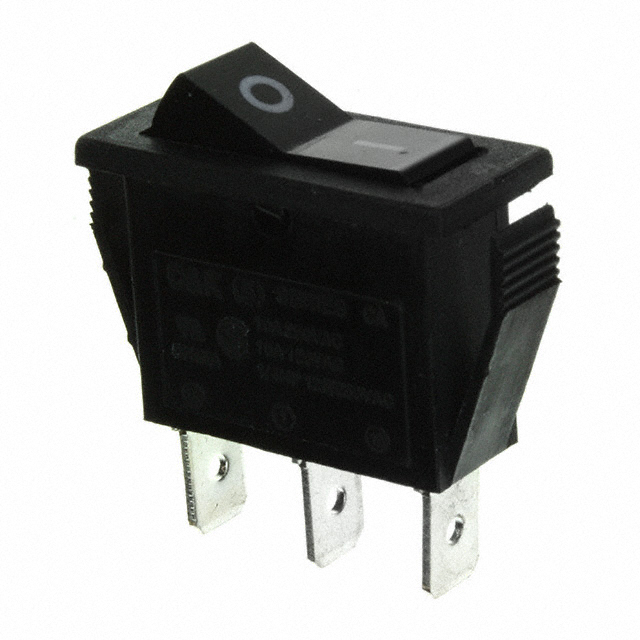

 Littelfuse/Commercial Vehicle Products | Black | SPDT | On-On | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Standard V) | 15 A | 10.67 mm | 28.2 mm | 65 °C | -30 ░C | 10000 Cycles | Positive Detent | O - | 125 V | CSA UL |

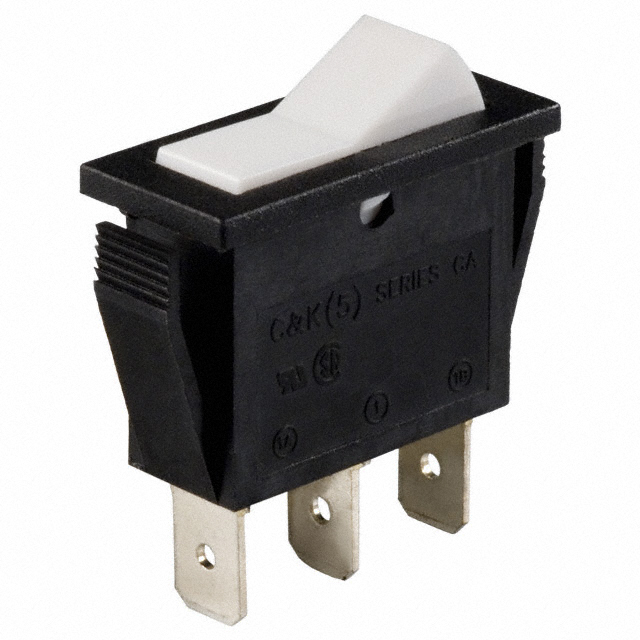

 Littelfuse/Commercial Vehicle Products | White | SPDT | On-On | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Standard V) | 15 A | 10.67 mm | 28.2 mm | 65 °C | -30 ░C | 10000 Cycles | Positive Detent | No Marking | 125 V | CSA UL |
 Littelfuse/Commercial Vehicle Products | Black | SPDT | On-On | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Standard V) | 15 A | 10.67 mm | 28.2 mm | 65 °C | -30 ░C | 10000 Cycles | Positive Detent | No Marking | 125 V | CSA UL |
Littelfuse/Commercial Vehicle Products | Green | SPDT | On-On | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Curved) | 15 A | 10.67 mm | 28.2 mm | 65 °C | -30 ░C | 10000 Cycles | Positive Detent | O - | 125 V | CSA UL |
Littelfuse/Commercial Vehicle Products | Yellow | SPDT | On-On | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Curved) | 15 A | 10.67 mm | 28.2 mm | 65 °C | -30 ░C | 10000 Cycles | Positive Detent | O - | 125 V | CSA UL |
Littelfuse/Commercial Vehicle Products | Black | SPDT | On-On | Quick Connect - 0.250" (6.3mm) | Panel Mount Snap-In | Concave (Curved) | 15 A | 10.67 mm | 28.2 mm | 65 °C | -30 ░C | 10000 Cycles | Positive Detent | No Marking | 125 V | CSA UL |
