5M160Z Series

Manufacturer: Altera

Catalog

IC CPLD 128MC 7.5NS 68MBGA

Part	Supplier Device Package	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of Macrocells	Number of Logic Elements/Blocks	Programmable Type	Delay Time tpd(1) Max [Max]	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type
Altera 5M160ZM68C5N	68-MBGA (5x5)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	52	0 °C	85 °C	68-TFBGA	Surface Mount
Altera 5M160ZT100A5N	100-TQFP (14x14)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	79 I/O	-40 C	125 °C	100-TQFP	Surface Mount

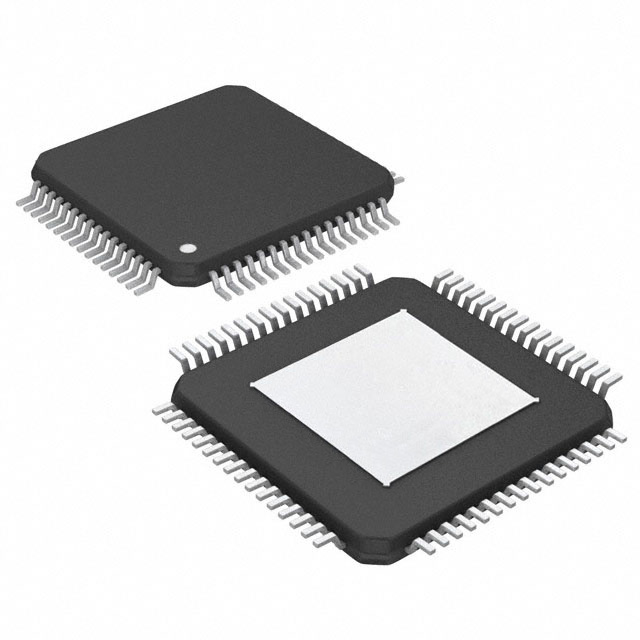

Altera 5M160ZE64C4N	64-EQFP (7x7)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	54	0 °C	85 °C	64-TQFP Exposed Pad	Surface Mount
Altera 5M160ZT100C5N	100-TQFP (14x14)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	79 I/O	0 °C	85 °C	100-TQFP	Surface Mount
Altera 5M160ZT100C5N	100-TQFP (14x14)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	79 I/O	0 °C	85 °C	100-TQFP	Surface Mount
Altera 5M160ZM68C4N	68-MBGA (5x5)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	52	0 °C	85 °C	68-TFBGA	Surface Mount
Altera 5M160ZM68C5N	68-MBGA (5x5)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	52	0 °C	85 °C	68-TFBGA	Surface Mount
Altera 5M160ZE64C4N	64-EQFP (7x7)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	54	0 °C	85 °C	64-TQFP Exposed Pad	Surface Mount
Altera 5M160ZM68C4N	68-MBGA (5x5)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	52	0 °C	85 °C	68-TFBGA	Surface Mount
Altera 5M160ZT100A5N	100-TQFP (14x14)	1.71 V	1.89 V	128	160	In System Programmable	7.5 ns	79 I/O	-40 C	125 °C	100-TQFP	Surface Mount
