399-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

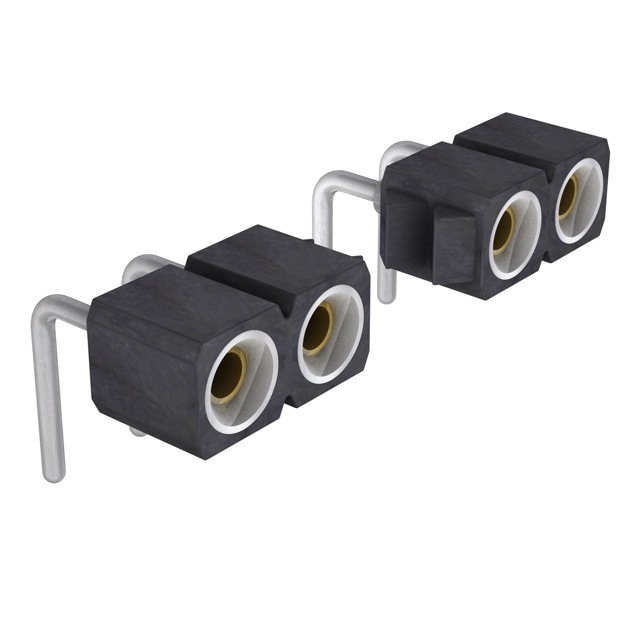

CONN SOCKET 38P 0.1 GOLD PCB R/A
| Part | Contact Material | Contact Shape | Insulation Material | Number of Rows | Fastening Type | Number of Positions | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Material Flammability Rating | Insulation Color | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Finish - Mating | Mounting Type | Number of Positions Loaded | Contact Finish Thickness - Mating | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 38 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 40 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 24 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 28 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 21 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 39 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 35 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | 33 | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 5 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash | |
Preci-Dip | Beryllium Copper | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 1 | Push-Pull | 7 | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | 3 A | UL94 V-0 | Black | Female Socket | 0.126 " | 3.2 mm | Socket | Solder | -55 C | 125 °C | Tin | Gold | Right Angle Through Hole | All | Flash |
