T41130 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT MALE 3POS SILVER SCREW

Part	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shell Material	Primary Material	Shell Finish	Mounting Type	Insert Material [custom]	Insert Material [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Features	Termination	Shielding	Color	Shell Size - Insert	Current Rating (Amps)	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Voltage Rating	Fastening Type	Contact Finish - Mating	Orientation	Applications	Contact Material	Connector Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors T4113001032-000	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)	2.03 µm	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-3	4 A	0.157 in	0.236 in	6 mm	4 mm	250 V	Threaded	Silver	A	Industrial	Brass	Receptacle Male Pins
TE Connectivity AMP Connectors T4113001042-000	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)	2.03 µm	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-4	4 A	0.157 in	0.236 in	6 mm	4 mm	250 V	Threaded	Silver	A	Industrial	Brass	Receptacle Male Pins	4
TE Connectivity AMP Connectors T4113011031-000	Brass Nickel	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)			Backshell	Screw	Shielded	Silver	M12-3	4 A	0.157 in	0.236 in	6 mm	4 mm	250 V	Threaded	Gold	A	Industrial	Brass	Receptacle Male Pins		0.076 µm	3 µin

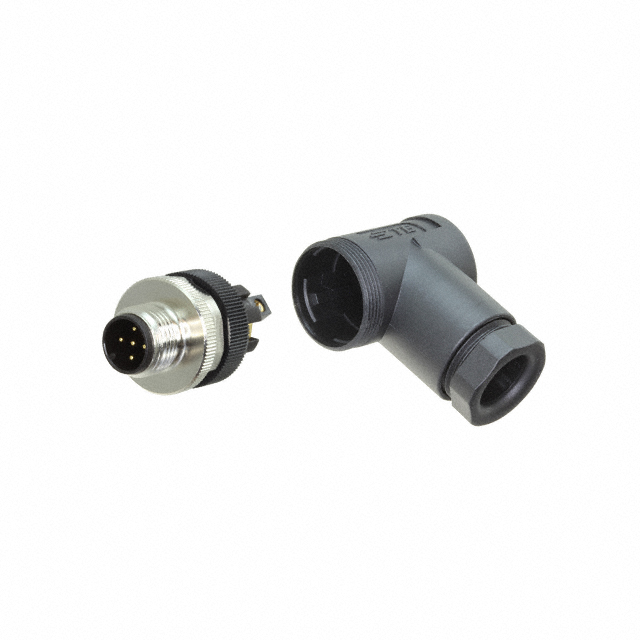

TE Connectivity AMP Connectors T4113002051-000	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)			Backshell	Screw	Unshielded	Black Silver	M12-5	4 A	0.236 in	0.315 in	8 mm	6 mm	60 VDC	Threaded	Gold	A	Industrial	Zinc Alloy	Receptacle Male Pins	5	0.076 µm	3 µin
TE Connectivity AMP Connectors T4113002052-000	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)	2.03 µm	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-5	4 A	0.236 in	0.315 in	8 mm	6 mm	60 VDC	Threaded	Silver	A	Industrial	Brass	Receptacle Male Pins	5
TE Connectivity AMP Connectors T4113002041-000	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)			Backshell	Screw	Unshielded	Black Silver	M12-4	4 A	0.236 in	0.315 in	8 mm	6 mm	250 V	Threaded	Gold	A	Industrial	Zinc Alloy	Receptacle Male Pins	4	0.076 µm	3 µin

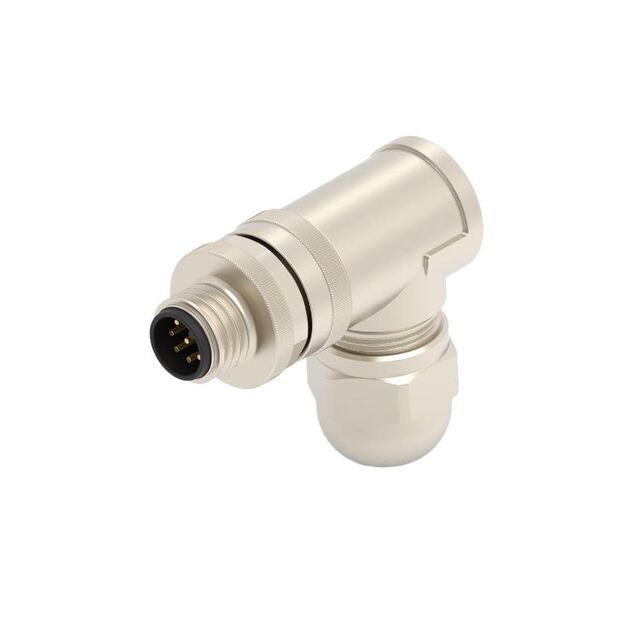

TE Connectivity AMP Connectors T4113011081-000	Brass Nickel	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)			Backshell	Screw	Shielded	Silver	M12-8	2 A	0.157 in	0.236 in	6 mm	4 mm	30 VDC	Threaded	Gold	A	Industrial	Zinc Alloy	Receptacle Male Pins	8	0.076 µm	3 µin
TE Connectivity AMP Connectors T4113012021-000	Brass Nickel	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)			Backshell	Screw	Shielded	Silver	M12-2	4 A	0.236 in	0.315 in	8 mm	6 mm	250 V	Threaded	Gold	A	Industrial	Brass	Receptacle Male Pins	2	0.076 µm	3 µin
TE Connectivity AMP Connectors T4113001052-000	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)	2.03 µm	80 µin	Backshell	Screw	Unshielded	Black Silver	M12-5	4 A	0.157 in	0.236 in	6 mm	4 mm	60 VDC	Threaded	Silver	A	Industrial	Brass	Receptacle Male Pins	5
TE Connectivity AMP Connectors T4113012051-000	Brass Nickel	85 °C	-40 C	IP67 - Dust Tight Waterproof	Brass	Metal	Nickel	Free Hanging (In-Line) Right Angle	Nylon	Polyamide (PA)			Backshell	Screw	Shielded	Silver	M12-5	4 A	0.236 in	0.315 in	8 mm	6 mm	60 VDC	Threaded	Gold	A	Industrial	Zinc Alloy	Receptacle Male Pins	5	0.076 µm	3 µin
