G16LX Series
Manufacturer: Kycon, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS 5G MAGNETICS, FULL SHIELD TOP & SIDE TABS, LED GRN YEL, 50U
| Part | Connector Type | LED Color | Features | Tab Direction | Height Above Board | Number of Rows | Contact Material | Mounting Type | Number of Cores per Jack | Termination | Number of Ports | Contact Finish | Operating Temperature (Min) | Operating Temperature (Max) | Orientation Angle | Orientation Direction | Shielding | Applications | Housing Material | Shield Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

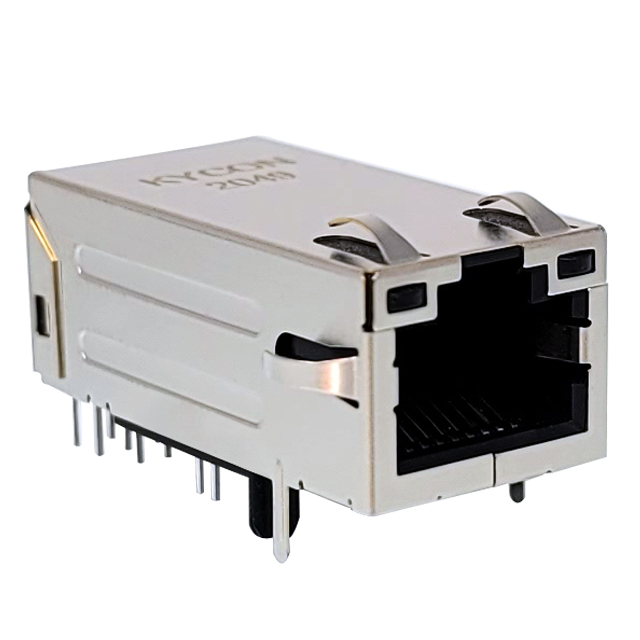

 Kycon, Inc. | RJ45 | Green - Yellow | Board Guide | Up | 0.536 in | 1 | Phosphor Bronze | Through Hole | 8 | Solder | 1 | Gold | -40 °C | 85 °C | 90 ° | Right | EMI Finger Shielded | 5G Base-T AutoMDIX Power over Ethernet (PoE) | PBT Polybutylene Terephthalate | Brass | 50 µin |

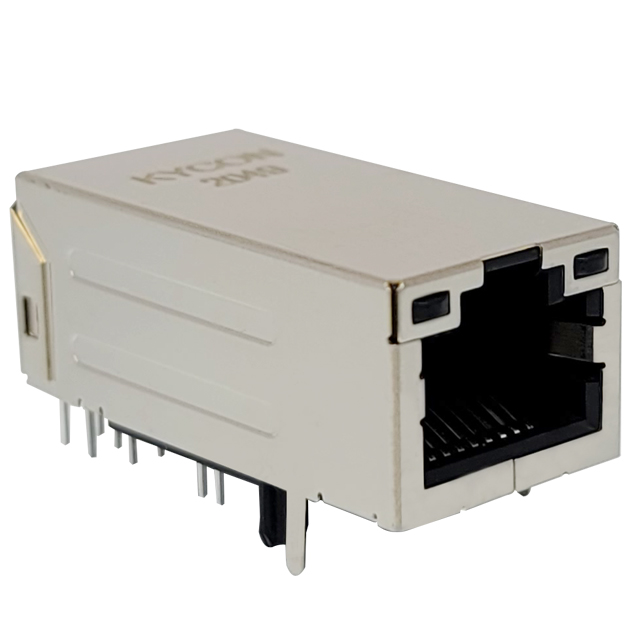

 Kycon, Inc. | RJ45 | Green - Yellow | Board Guide | Up | 0.536 in | 1 | Phosphor Bronze | Through Hole | 8 | Solder | 1 | Gold | -40 °C | 85 °C | 90 ° | Right | Shielded | 5G Base-T AutoMDIX Power over Ethernet (PoE) | PBT Polybutylene Terephthalate | Brass | 50 µin |
