845-069 Series
Manufacturer: EDAC Inc.
Beta
⌘K

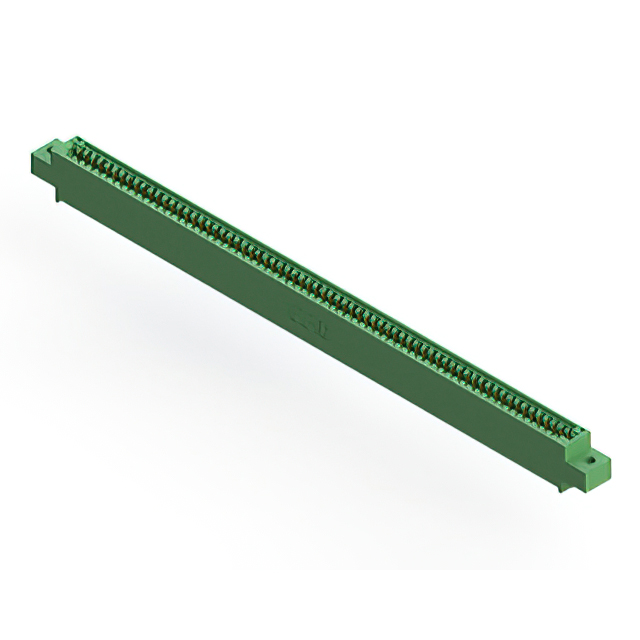

CONN EDGE SINGLE FML 69POS 0.100
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Gender | Color | Number of Positions/Bay/Row [custom] | Termination | Pitch | Pitch | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Read Out | Mounting Type | Number of Rows | Card Type | Material - Insulation | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Solder Eyelet(s) | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 0.156 " | 3.96 mm | |
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Wire Wrap | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 0.116 " | 2.95 mm | Floating Bobbin Flush Mount |
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Wire Wrap | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 0.128 " | 3.25 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Wire Wrap | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 0.128 " | 3.25 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Solder | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 0.128 " | 3.25 mm | |
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Wire Wrap | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 0.116 " | 2.95 mm | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Solder | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Right Angle Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Wire Wrap | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Wire Wrap | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 125 °C | -40 C | 1 | Female | Green | 69 | Wire Wrap | 0.1 " | 2.54 mm | 69 | 0.25 Ám | 10 Áin | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Single | Through Hole | 1 | Non Specified - Single Edge | Diallyl Phthalate (DAP) | Copper Alloy | 0.156 " | 3.96 mm |
