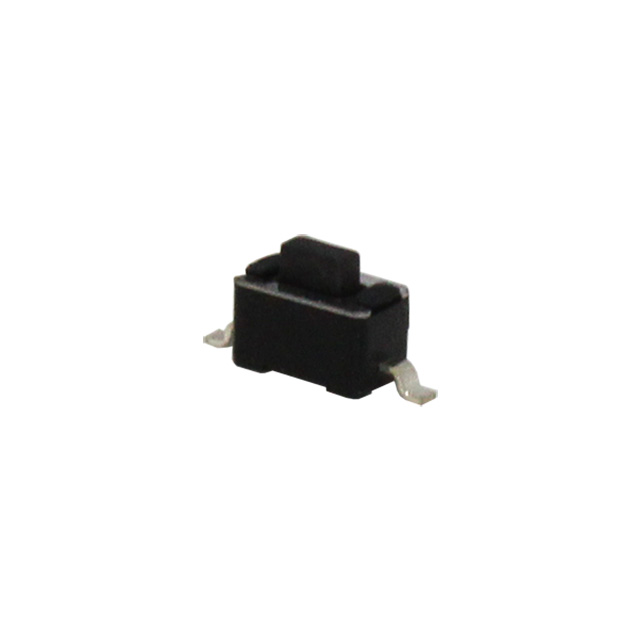

CS11015 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Actuator Height off PCB, Vertical [z] | Operating Force | Outline [x] | Outline [y] | Actuator Orientation | Termination Style | Illumination | Mounting Type | Switch Function | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Polyamide (PA6T) Nylon 6T | 0.25 mm | SPST-NO | 85 °C | -40 C | Rectangular Button | 5 mm | 260 gf | 6.05 mm | 3.5 mm | Top Actuated | Gull Wing | Non-Illuminated | Surface Mount | Off-Mom | 0.05 A 50 VDC |

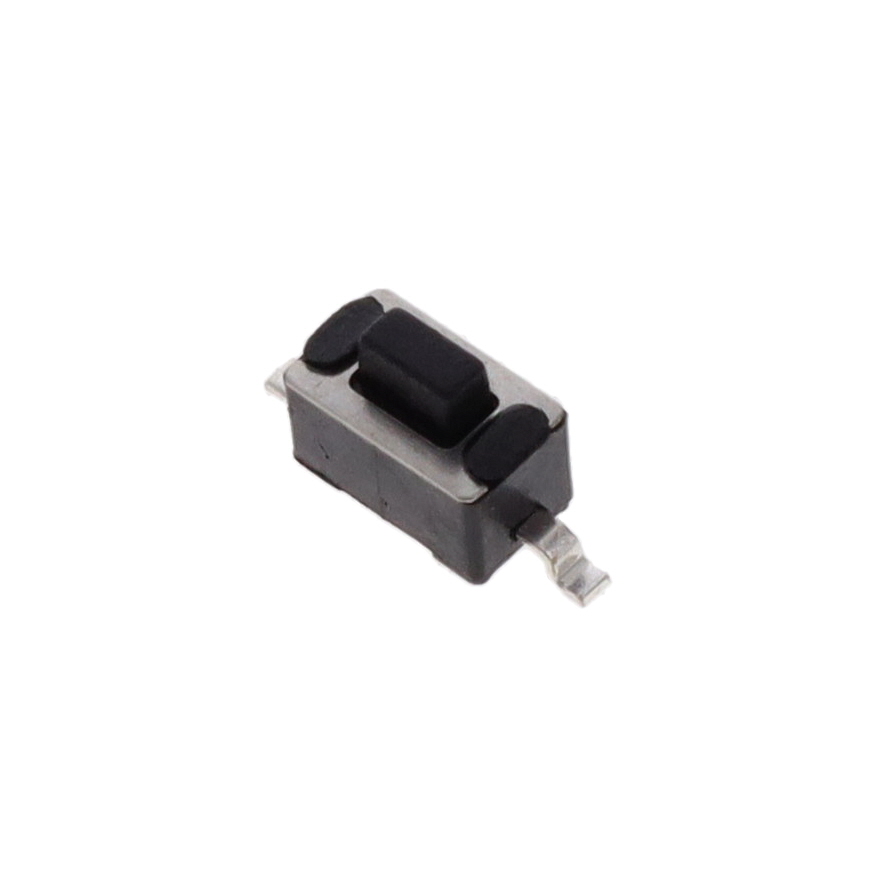

 CIT Relay and Switch | Polyamide (PA46) Nylon 4/6 | 0.25 mm | SPST-NO | 85 °C | -40 C | Rectangular Button | 5 mm | 160 gf | 6.05 mm | 3.5 mm | Top Actuated | Gull Wing | Non-Illuminated | Surface Mount | Off-Mom | 0.05 A 50 VDC |
