080SVM Series

Catalog

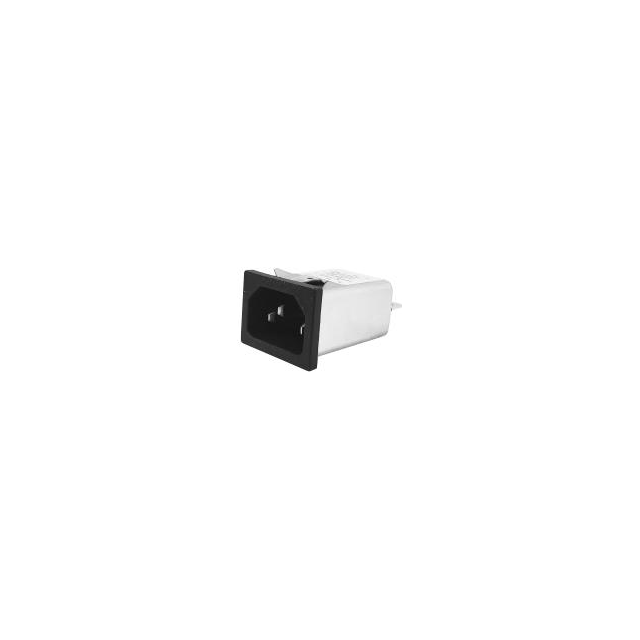

LINE FILTER 250VAC 15A CHASSIS

Part	Filter Type	Termination Style	Approval Agency	Current	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Configuration	Applications	Voltage - Rated AC
Astrodyne TDI 080SVM.01500.00	Single Phase	IEC 320-C14 Quick Connect	CE cETLus SEMKO	15 A	-25 °C	40 °C	60 Hz	50 Hz	Chassis Mount	Single Stage	General Purpose	250 V
Astrodyne TDI 080SVM.00800.00	Single Phase	IEC 320-C14 Quick Connect	CE cETLus SEMKO	8 A	-25 °C	40 °C	60 Hz	50 Hz	Chassis Mount	Single Stage	General Purpose	250 V
Astrodyne TDI 080SVM.00100.00	Single Phase	IEC 320-C14 Quick Connect	CE cETLus SEMKO	1 A	-25 °C	40 °C	60 Hz	50 Hz	Chassis Mount	Single Stage	General Purpose	250 V
Astrodyne TDI 080SVM.01000.00	Single Phase	IEC 320-C14 Quick Connect	CE cETLus SEMKO	10 A	-25 °C	40 °C	60 Hz	50 Hz	Chassis Mount	Single Stage	General Purpose	250 V
Astrodyne TDI 080SVM.00300.00	Single Phase	IEC 320-C14 Quick Connect	CE cETLus SEMKO	3 A	-25 °C	40 °C	60 Hz	50 Hz	Chassis Mount	Single Stage	General Purpose	250 V
Astrodyne TDI 080SVM.00600.00	Single Phase	IEC 320-C14 Quick Connect	CE cETLus SEMKO	6 A	-25 °C	40 °C	60 Hz	50 Hz	Chassis Mount	Single Stage	General Purpose	250 V
