CC-1-3055 Series

Catalog

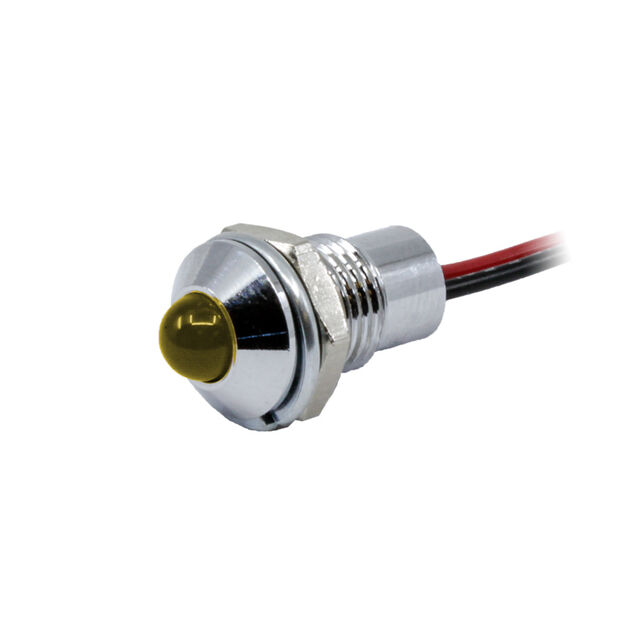

PMI DIA .319" (8.10MM) YELLOW 60

Part	Voltage	Current	Lamp Color	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak	Viewing Angle	Lens Style	Ratings	Termination Style	Lens Color	Millicandela Rating	Lens Size	Lens Size	Panel Cutout Shape
Visual Communications Company - VCC CC-1-3055-9914-I	2 V 60 V	20 mA	Yellow	LED	0.32 "	8.1 mm	590 nm	30 °	Round with Domed Top	DC	Wire Leads - 6.000" (152.40mm)	Yellow	400 mcd	5 mm	T-1 3/4	Round
Visual Communications Company - VCC CC-1-3055-9920-I	2 V 120 V	20 mA	Yellow	LED	0.32 "	8.1 mm	590 nm	30 °	Round with Domed Top	AC	Wire Leads - 6.000" (152.40mm)	Yellow	400 mcd	5 mm	T-1 3/4	Round
Visual Communications Company - VCC CC-1-3055-9907-I	2 V 5 V	20 mA	Yellow	LED	0.32 "	8.1 mm	590 nm	30 °	Round with Domed Top	DC	Wire Leads - 6.000" (152.40mm)	Yellow	400 mcd	5 mm	T-1 3/4	Round
Visual Communications Company - VCC CC-1-3055-9910-I	2 V 24 V	20 mA	Yellow	LED	0.32 "	8.1 mm	590 nm	30 °	Round with Domed Top	DC	Wire Leads - 6.000" (152.40mm)	Yellow	400 mcd	5 mm	T-1 3/4	Round
Visual Communications Company - VCC CC-1-3055-0000-I	2 V	20 mA	Yellow	LED	0.32 "	8.1 mm	590 nm	30 °	Round with Domed Top		Wire Leads - 6.000" (152.40mm)	Yellow	400 mcd	5 mm	T-1 3/4	Round
