75869 Series

Catalog

CONN HEADER VERT 34POS 2.54MM

Part	Contact Finish - Post	Material Flammability Rating	Number of Positions	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Shrouding	Style	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Shape	Insulation Color	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Features	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 75869-306LF	Tin	UL94 V-0	34	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin	Gold GXT™	Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	15 µin	0.38 µm
Amphenol ICC (FCI) 75869-701LF		UL94 V-0	10	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2			Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin		Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in
Amphenol ICC (FCI) 75869-101LF	Tin	UL94 V-0	10	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin	Gold GXT™	Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	30 Áin	0.76 Ám
Amphenol ICC (FCI) 75869-304LF	Tin	UL94 V-0	20	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin	Gold GXT™	Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	15 µin	0.38 µm

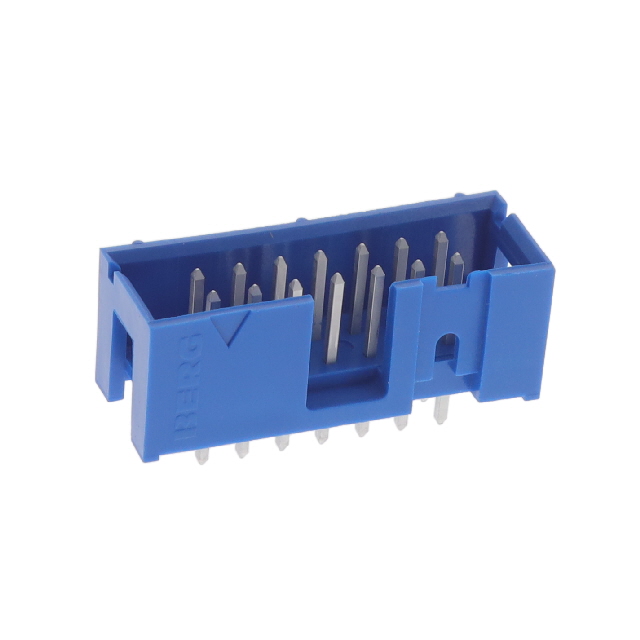

Amphenol ICC (FCI) 75869-202LF	Tin	UL94 V-0	14	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin		Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	78.7 µin	2 µm
Amphenol ICC (FCI) 75869-231LF	Tin	UL94 V-0	6	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin		Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	78.7 µin	2 µm
Amphenol ICC (FCI) 75869-165LF	Tin	UL94 V-0	4	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze			Male Pin	Gold GXT™	Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	30 Áin	0.76 Ám	4.1 mm	0.161 "
Amphenol ICC (FCI) 75869-207LF	Tin	UL94 V-0	40	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin		Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	78.7 µin	2 µm
Amphenol ICC (FCI) 75869-119LF	Tin	UL94 V-0	30	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin	Gold GXT™	Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	30 Áin	0.76 Ám
Amphenol ICC (FCI) 75869-233LF	Tin	UL94 V-0	30	Through Hole	6 mm	0.236 in	All	Shrouded - 4 Wall	Board to Cable/Wire	2	2 çm	78.7 çin	Header	Square	Blue	Phosphor Bronze	0.12 in	3.05 mm	Male Pin		Solder	2.54 mm	0.1 in	Push-Pull	Keying Slot	0.1 in	2.54 mm	9.57 mm	0.377 in	78.7 µin	2 µm
