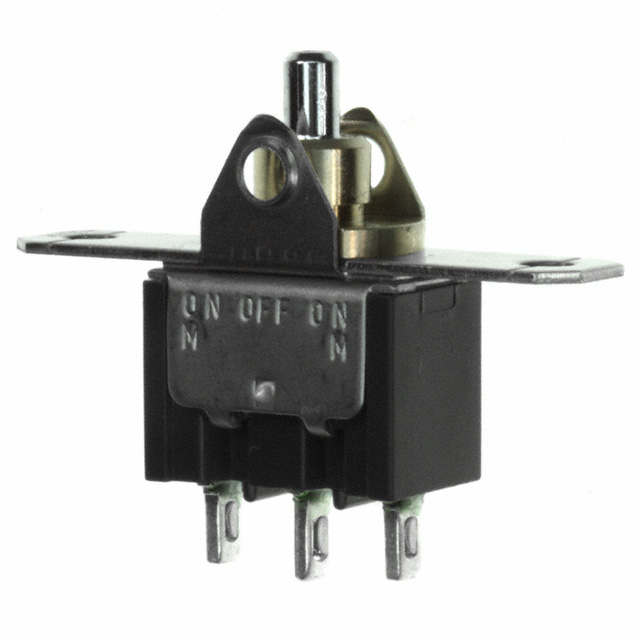

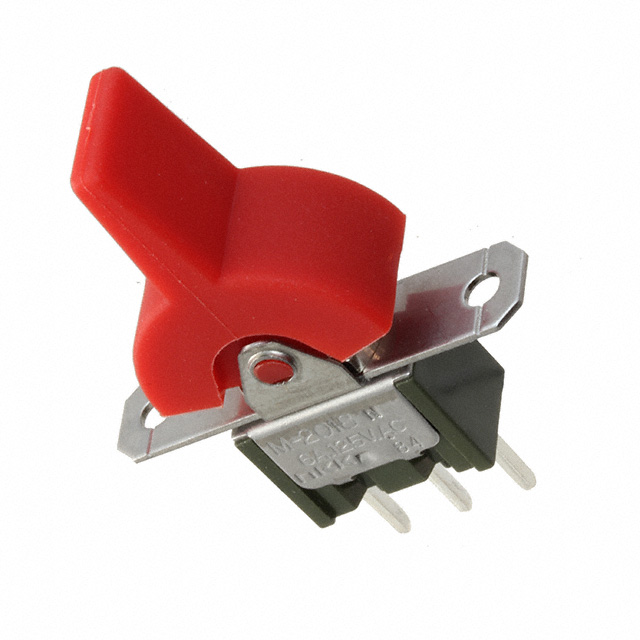

M2018TN Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 0.4VA 28V
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Color - Actuator/Cap | Actuator Type | Approval Agency | Switch Function | Mounting Type | Features | Actuator Marking | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Voltage Rating - AC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | White | Paddle | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | PC Pin | 28 V | 12.4 mm | 0.5 in | 0.4 VA |
NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | Concave | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | Solder Lug | 125 V | 10.1 mm | 17.8 mm | 3 A 6 A |
NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | Red | Concave | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | Solder Lug | 28 V | 10.1 mm | 17.8 mm | 0.4 VA |
 NKK Switches | 25000 Steps | 50000 Cycles | 30 V | Actuator Arm Cap Required | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | Varies by Cap | SPDT | 85 °C | -30 ░C | PC Pin | 125 V | 3 A 6 A | |||
NKK Switches | 25000 Steps | 50000 Cycles | 30 V | Black | Paddle | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | Solder Lug | 125 V | 12.4 mm | 0.5 in | 3 A 6 A |
NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | Paddle | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | Solder Lug | 125 V | 12.4 mm | 0.5 in | 3 A 6 A |
 NKK Switches | 25000 Steps | 50000 Cycles | 30 V | Actuator Arm Cap Required | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | Varies by Cap | SPDT | 85 °C | -30 ░C | Solder Lug | 125 V | 3 A 6 A | |||
NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | Black | Concave | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | Solder Lug | 28 V | 10.1 mm | 17.8 mm | 0.4 VA |
 NKK Switches | 25000 Steps | 50000 Cycles | 30 V | Black | Concave | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | Solder Lug | 125 V | 10.1 mm | 17.8 mm | 3 A 6 A |
NKK Switches | 25000 Steps | 50000 Cycles | 30 V | White | Concave | CSA UL | Mom-Off-Mom | Flange Panel Mount | Epoxy Sealed Terminals | No Marking | SPDT | 85 °C | -30 ░C | Solder Lug | 125 V | 12.4 mm | 0.5 in | 3 A 6 A |
