NJ02 Series
Manufacturer: Amphenol Anytek
Beta
⌘K

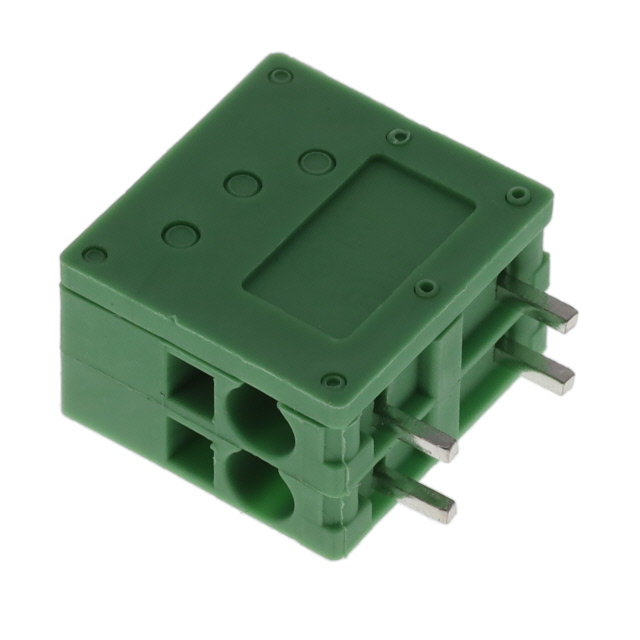

TERM BLK 2POS SIDE ENT 3.5MM PCB
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Current | Clamp Material - Plating | Mating Orientation | Positions Per Level | Voltage | Housing Material | Mounting Type | Number of Levels | Wire Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Anytek | 16 AWG | 24 AWG | 3.5 mm | 0.138 in | -40 °C | 115 °C | 10 A | Stainless Steel | Horizontal with Board | 2 | 300 V | Thermoplastic | Through Hole | 1 | Push-In Spring Screwless - Leg Spring | Green |
Amphenol Anytek | 12 AWG | 24 AWG | 5 mm | 0.197 in | -40 °C | 115 °C | Stainless Steel | Horizontal with Board | 2 | 300 V | Thermoplastic | Through Hole | 1 | Push-In Spring Screwless - Leg Spring | Black |
