G3S4-A Series

Catalog

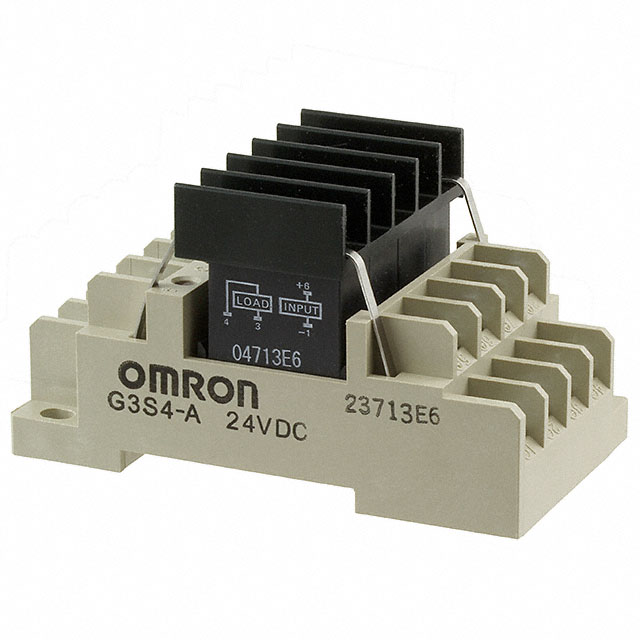

SSR RELAY SPST-NO 600MA 75-264V

Part	Approval Agency	Circuit	Termination Style	Load Current	Mounting Type	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Omron Electronics Inc-EMC Div G3S4-A1 DC24	CE CSA UR VDE	SPST-NO (1 Form A) x 4	Screw Terminal	600 mA	DIN Rail	AC	75 V	264 V	Module	19.2 V	28.8 V	55 °C	-25 °C
Omron Electronics Inc-EMC Div G3S4-A DC12	CE CSA UR VDE	SPST-NO (1 Form A) x 4	Screw Terminal	1 A	DIN Rail	AC	75 V	264 V	Module	9.6 V	14.4 V	55 °C	-25 °C
Omron Electronics Inc-EMC Div G3S4-A DC24	CE CSA UR VDE	SPST-NO (1 Form A) x 4	Screw Terminal	1 A	DIN Rail	AC	75 V	264 V	Module	19.2 V	28.8 V	55 °C	-25 °C
