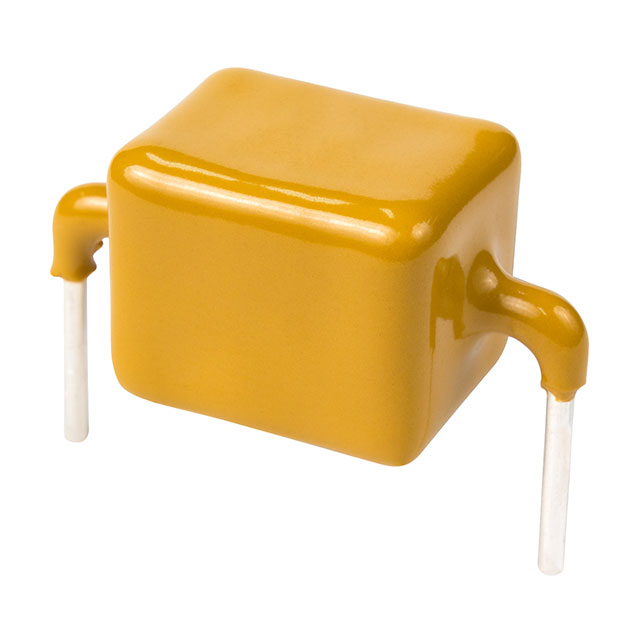

PTVS10 Series

Catalog

10KA 76V BIDIRECTIONAL POWERTVS DIODE /TAPE & REEL - 13" REEL

Part	Supplier Device Package	Bidirectional Channels [custom]	Type	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case [custom]
Bourns Inc. PTVS10-076C-M	2-SMD	1	Zener	10 kHz 5500 pF	76 V	10000 A	10 kA	Surface Mount	2-SMD Flat Leads	-55 ░C	125 °C	85 V	General Purpose	135 V

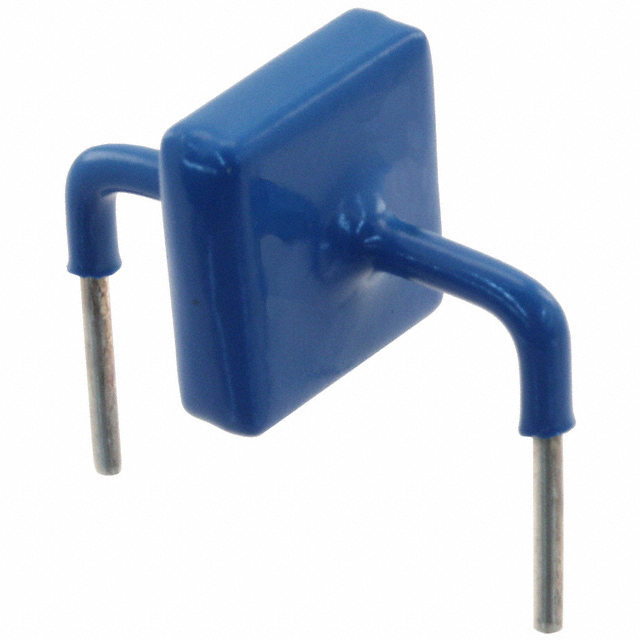

Bourns Inc. PTVS10-076C	Axial	1	Zener	10 kHz 8600 pF	76 V	10000 A	10 kA	Through Hole	Axial Right Angle Bend	-40 C	125 °C	85 V	General Purpose	160 V	24.15 mm
Bourns Inc. PTVS10-430C-TH	Axial	1	Zener	10 kHz 1100 pF	430 V	10000 A	10 kA	Through Hole	Axial Right Angle Bend	-55 ░C	125 °C	440 V	General Purpose	580 V	24.15 mm
Bourns Inc. PTVS10-066C-M	2-SMD	1	Zener	10 kHz 6700 pF	66 V	10000 A	10 kA	Surface Mount	2-SMD Flat Leads	-55 ░C	125 °C	72 V	General Purpose	120 V
Bourns Inc. PTVS10-320C-TH	Axial	1	Zener	10 kHz 1400 pF	320 V	10000 A	10 kA	Through Hole	Axial Right Angle Bend	-55 ░C	125 °C	336 V	General Purpose	440 V	24.15 mm

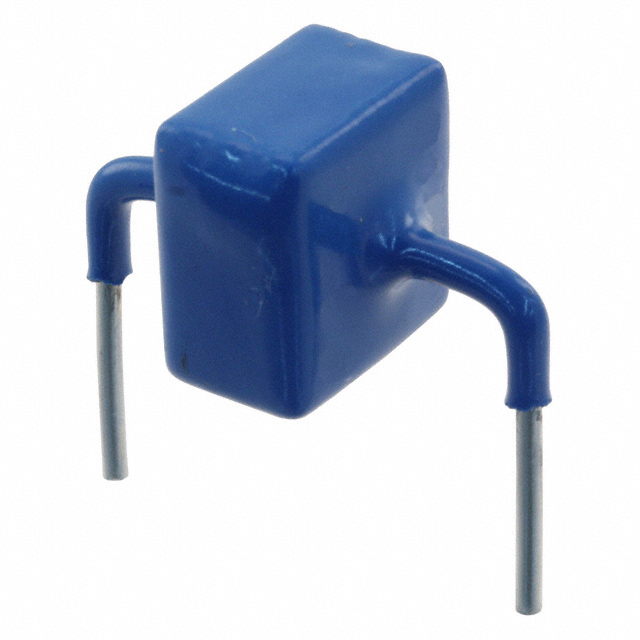

Bourns Inc. PTVS10-170C	Axial	1	Zener	4000 pF	170 V	10000 A	10 kA	Through Hole	Axial Right Angle Bend	-40 C	125 °C	190 V	General Purpose	300 V	24.15 mm
Bourns Inc. PTVS10-380C	Axial	1	Zener	2000 pF	380 V	10000 A	10 kA	Through Hole	Axial Right Angle Bend	-40 C	125 °C	401 V	General Purpose	570 V	24.15 mm
Bourns Inc. PTVS10-076C-SH	2-SMD	1	Zener	10 kHz 6000 pF	76 V	10000 A	10 kA	Surface Mount	2-SMD	-55 ░C	125 °C	85 V	General Purpose	140 V

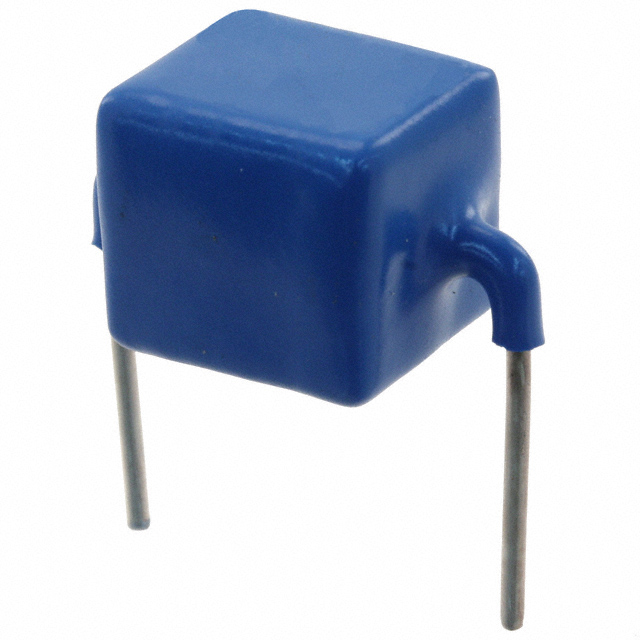

Bourns Inc. PTVS10-320C	Axial	1	Zener	2700 pF	320 V	10000 A	10 kA	Through Hole	Axial Right Angle Bend	-40 C	125 °C	336 V	General Purpose	500 V	24.15 mm
Bourns Inc. PTVS10-380C-TH	Axial	1	Zener	10 kHz 1200 pF	380 V	10000 A	10 kA	Through Hole	Axial Right Angle Bend	-55 ░C	125 °C	401 V	General Purpose	520 V	24.15 mm
