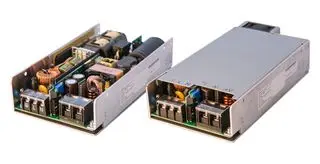

IMA-S600 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 600W, 80V AC TO 275V AC
| Part | Current - Output 1 | Efficiency | Number of Outputs | Voltage - Output 1 | Features | Mounting Type | Power (Watts) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Type | Voltage - Isolation | Applications | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 25 A | 94 % | 1 | 24 V | Adjustable Output DC Input Capable Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 600 W | 101.6 mm | 4 " | 203.2 mm | 8 in | 40.6 mm | 1.6 " | 70 °C | -20 °C | 275 VAC 300 V | 80 VAC 120 VDC | Enclosed | 4000 V | ITE (Commercial) Medical | ||
 Delta Electronics | 12.5 A | 94 % | 1 | 48 V | Adjustable Output DC Input Capable Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 600 W | 4 " | 177.8 mm | 7 " | 1.6 " | 70 °C | -20 °C | 275 VAC 300 V | 80 VAC 120 VDC | Enclosed | 4000 V | ITE (Commercial) Medical | 40.6 mm | 101.6 mm |
