51S207 Series
Manufacturer: Rosenberger
Beta
⌘K

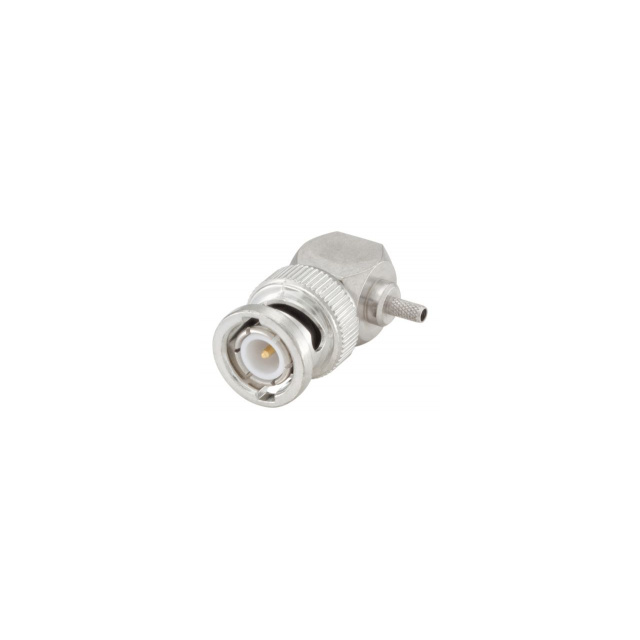

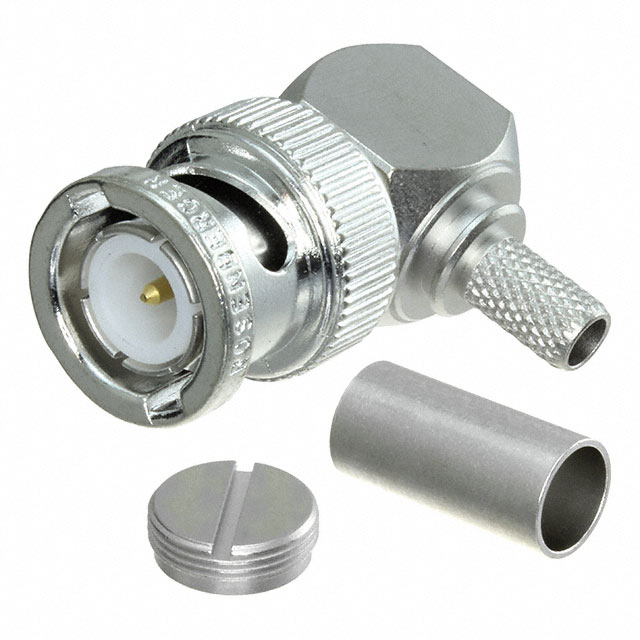

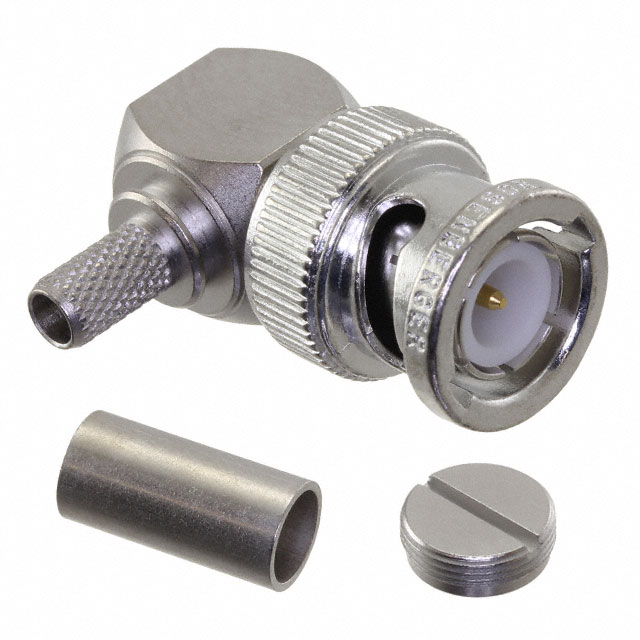

CONN BNC PLUG R/A 50OHM SOLDER
| Part | Includes | Body Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mating Cycles | Center Contact Plating | Body Finish | Cable Group | Contact Termination | Frequency - Max [Max] | Housing Color | Fastening Type | Mounting Type | Center Contact Material | Connector Style | Impedance | Connector Type | Shield Termination | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 Connector 1 End Cap 1 Ferrule | Brass | 400 V | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 500 | Gold | White Bronze | 141 RG-58C | Solder | 10 GHz | Silver | Bayonet Lock | Free Hanging (In-Line) Right Angle | Bronze | BNC | 50 Ohms | Plug Male Pin | Crimp | 1 | |
 Rosenberger | Brass | 400 V | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 500 | Gold | White Bronze | RG-316 | Solder | 10 GHz | Silver | Bayonet Lock | Free Hanging (In-Line) Right Angle | Brass | BNC | 50 Ohms | Plug Male Pin | Crimp | 1 | ||
 Rosenberger | 1 Connector 1 End Cap 1 Ferrule | Brass | 400 V | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 500 | Gold | White Bronze | RG-142B | Solder | 10 GHz | Silver | Bayonet Lock | Free Hanging (In-Line) Right Angle | Bronze | BNC | 50 Ohms | Plug Male Pin | Crimp | 1 | 223 400 |
