Df0 Series Series

Power Rocker Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Power Rocker Switch

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Current Rating (Amps)	Circuit	Actuator Marking	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Color - Actuator/Cap	Voltage Rating - DC	Actuator Type	Voltage Rating - AC	Electrical Life
Littelfuse/Commercial Vehicle Products DF62J12S2AHQF	85 °C	-20 C	On-Off	PC Pin	6 A 16 A	DPST	O I	cULus	12.5 mm	26.14 mm	Panel Mount Right Angle Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles

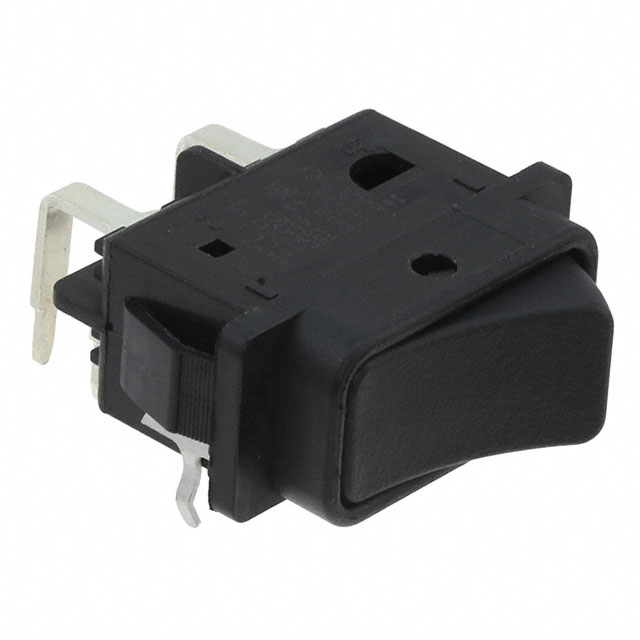

Littelfuse/Commercial Vehicle Products DF62J12S2AQA	85 °C	-20 C	On-Off	PC Pin	6 A 16 A	DPST	No Marking	cULus	12.5 mm	26.14 mm	Panel Mount Right Angle Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles
Littelfuse/Commercial Vehicle Products DF62J12S215QF	85 °C	-20 C	On-Off	Quick Connect - 0.250" (6.3mm)	6 A 16 A	DPST	No Marking	cULus	12.5 mm	26.14 mm	Panel Mount Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles

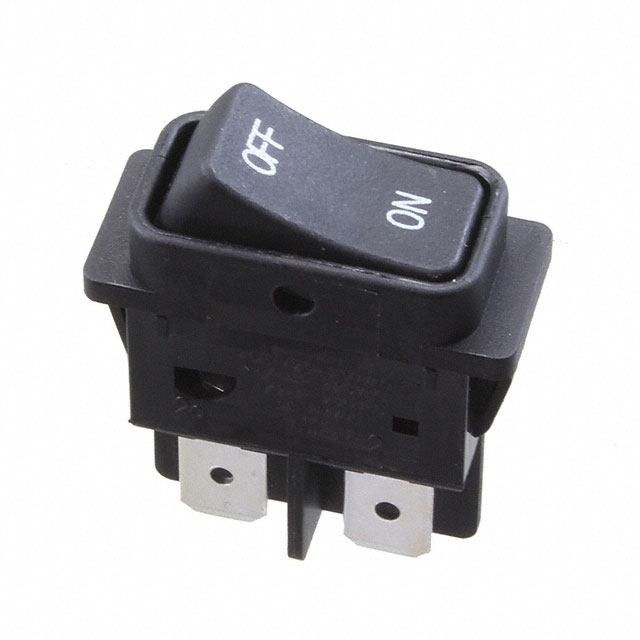

Littelfuse/Commercial Vehicle Products DF52J12S215DQA	85 °C	-20 C	On-Off	Quick Connect - 0.250" (6.3mm)	6 A 16 A	SPST	OFF ON Vertical	cULus	12.5 mm	26.14 mm	Panel Mount Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles
Littelfuse/Commercial Vehicle Products DF62J12S215DQA	85 °C	-20 C	On-Off	Quick Connect - 0.250" (6.3mm)	6 A 16 A	DPST	OFF ON Vertical	cULus	12.5 mm	26.14 mm	Panel Mount Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles
Littelfuse/Commercial Vehicle Products DF62J12P215HQA	85 °C	-20 C	On-Off	Quick Connect - 0.250" (6.3mm)	6 A 16 A	DPST	O I	cULus	12.5 mm	27.31 mm	Panel Mount Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles

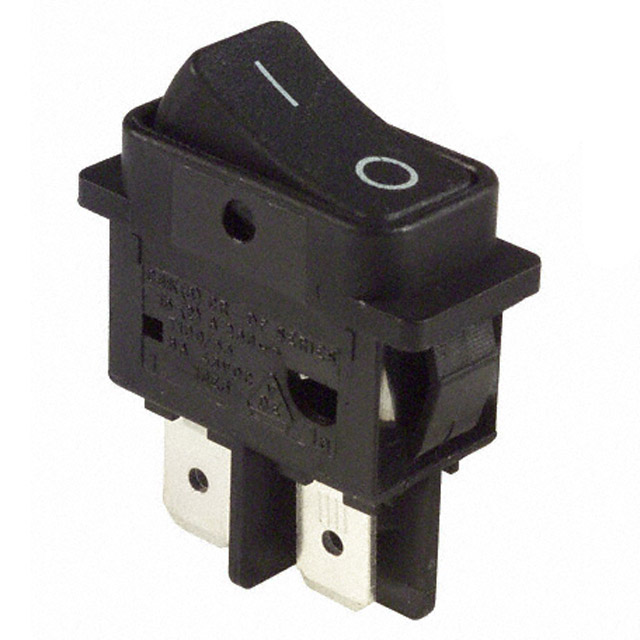

Littelfuse/Commercial Vehicle Products DF52J12P215PQF	85 °C	-20 C	On-Off	Quick Connect - 0.250" (6.3mm)	6 A 16 A	SPST	O -	cULus	12.5 mm	27.31 mm	Panel Mount Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles
Littelfuse/Commercial Vehicle Products DF62J12S2APQA	85 °C	-20 C	On-Off	PC Pin	6 A 16 A	DPST	O -	cULus	12.5 mm	26.14 mm	Panel Mount Right Angle Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles
Littelfuse/Commercial Vehicle Products DF52J12S215HQA	85 °C	-20 C	On-Off	Quick Connect - 0.250" (6.3mm)	6 A 16 A	SPST	O I	cULus	12.5 mm	26.14 mm	Panel Mount Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles

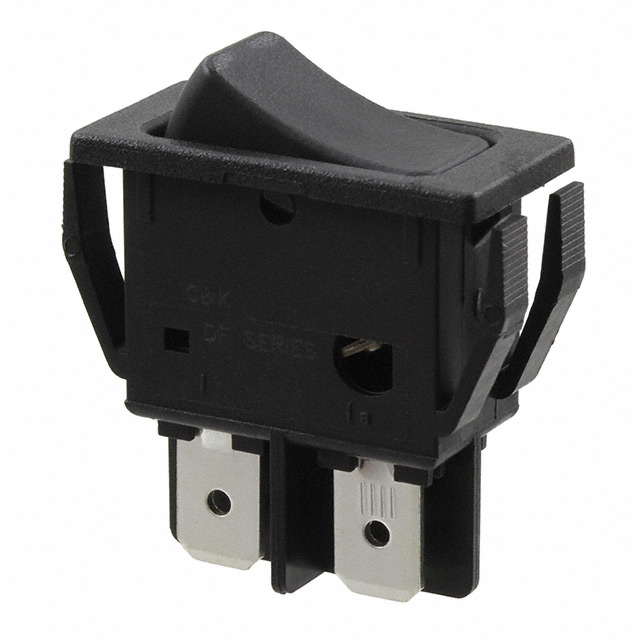

Littelfuse/Commercial Vehicle Products DF62J12P215QA	85 °C	-20 C	On-Off	Quick Connect - 0.250" (6.3mm)	6 A 16 A	DPST	No Marking	cULus	12.5 mm	27.31 mm	Panel Mount Snap-In	Black	48 V	Concave (Curved)	125 V	10000 Cycles

Catalog

Power Rocker Switch

Key Features

• Power switching up to 16 A

• Sub-panel and Front-panel mounting

• Multi-position and multi-pole function

Description

C&K’s DF series of switches are found in power supply applications, as well as in off-road vehicles and various appliances. Product designers for these fields need switch solutions that can protect against environmental damage and can support repeated use over time. The DF series power rocker switch from C&K offers power switching up to 16 A, sub-panel or Front-panel mounting and multi-position and multi-pole functions, making it easy to ensure the switch will fit your design.
