09628100 Series

Manufacturer: HARTING

Catalog

10B EMC BULKHEAD REAR FIT HOUSIN

Part	Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Lock Location	Housing Finish	Thread Size

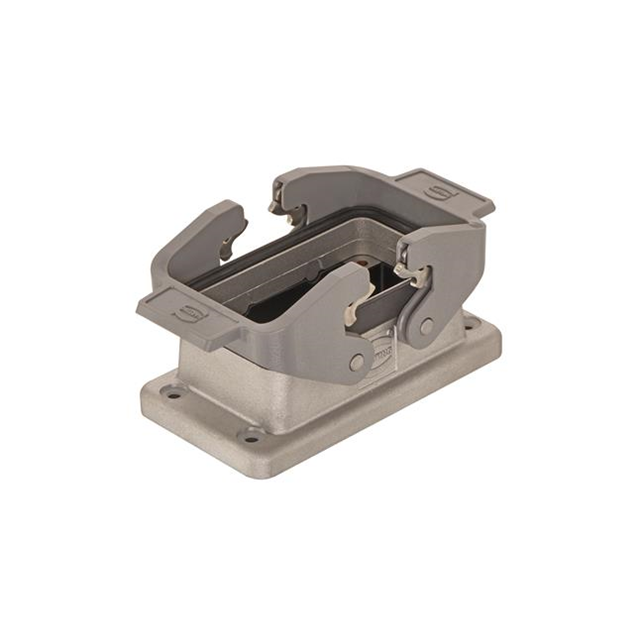

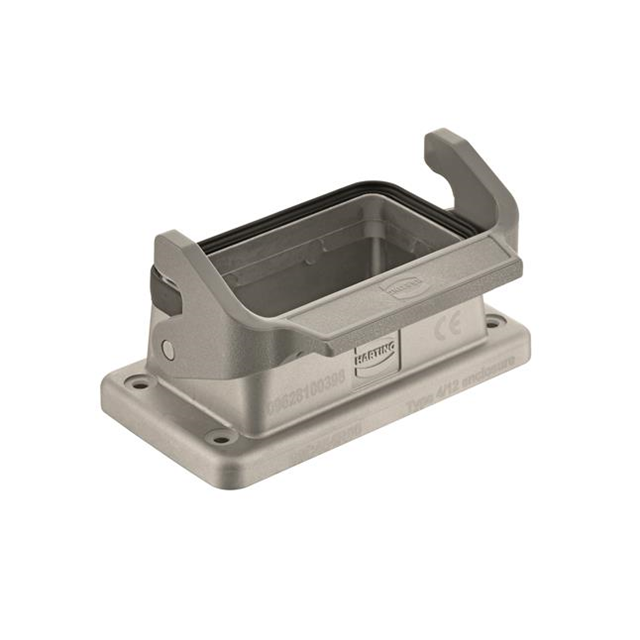

HARTING 09628100398	10B	125 °C	-40 C	IP66 - Dust Tight Water Resistant	Base - Panel Mount	Bottom Entry	98 mm	54 mm	1.406 in	3.858 "	35.7 mm	2.126 in	Aluminum Die Cast	Locking Clip (1) on Base Bottom

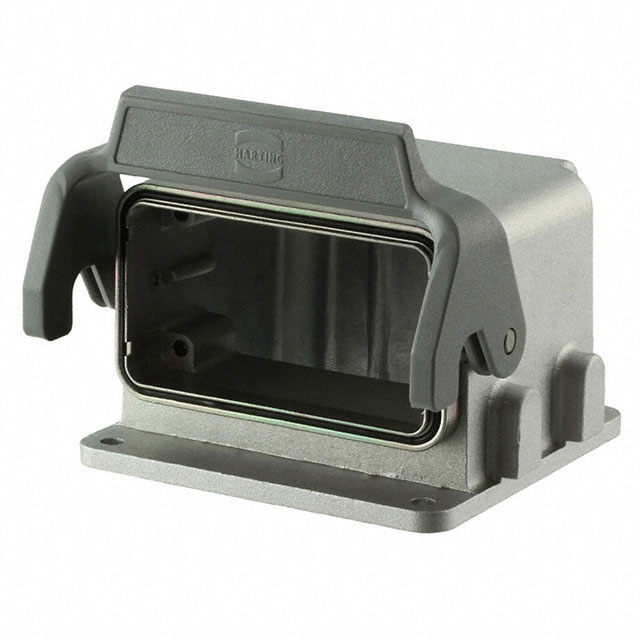

HARTING 09628100901	10B	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Panel Mount 90°	Bottom Entry	89 mm	82 mm	2.154 in	3.504 in	54.7 mm	3.228 in	Aluminum Die Cast	Locking Clip (1) on Base Bottom

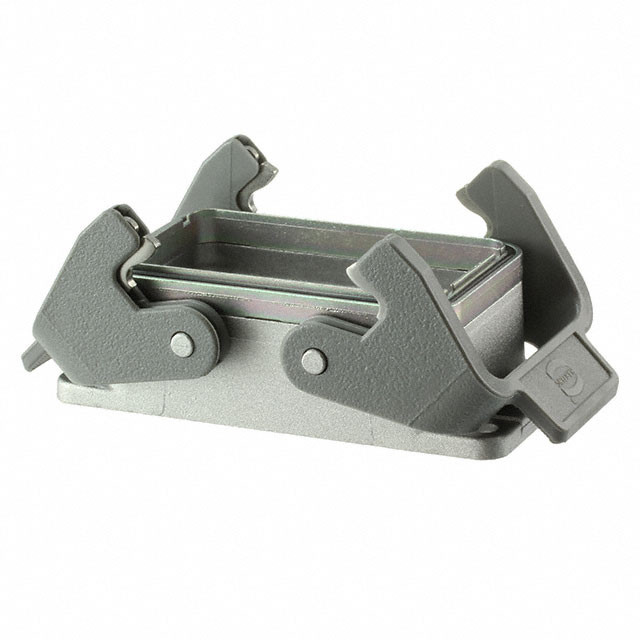

HARTING 09628100301	10B	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Base - Panel Mount	Bottom Entry	93 mm	43.4 mm	1.075 in	3.661 "	27.3 mm	1.709 "	Aluminum Die Cast	Locking Clip (2) on Base Bottom	EMC Coating
HARTING 09628100315	10B	125 °C	-40 C	IP66 - Dust Tight Water Resistant	Base - Panel Mount	Bottom Entry	98 mm	54 mm	1.406 in	3.858 "	35.7 mm	2.126 in	Aluminum Die Cast	Locking Clip (2) on Base Bottom
HARTING 09628100422	10B	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Hood	Top Entry	72.6 mm	43 mm	2.835 "	2.858 in	72 mm	1.693 "	Aluminum Die Cast	Locking Clip (2) on Base Bottom		PG21
HARTING 09628100232

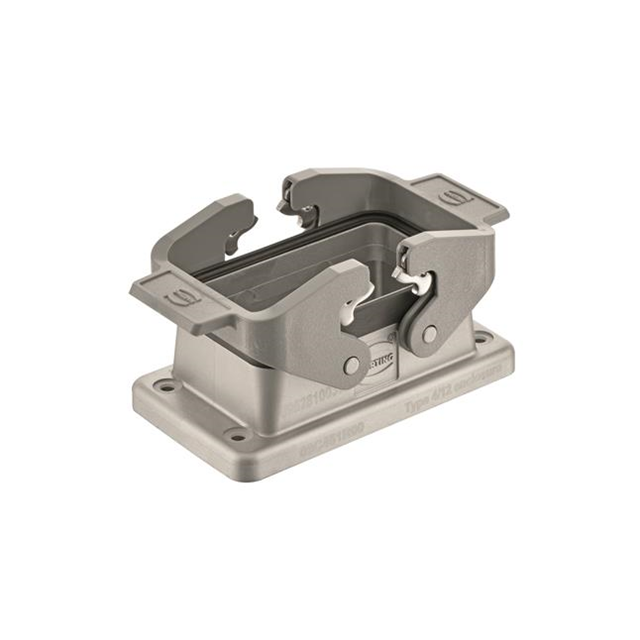

HARTING 09628100392	10B	125 °C	-40 C	IP66 - Dust Tight Water Resistant	Base - Panel Mount	Bottom Entry	98 mm	54 mm	1.406 in	3.858 "	35.7 mm	2.126 in	Aluminum Die Cast	Locking Clip (2) on Base Bottom

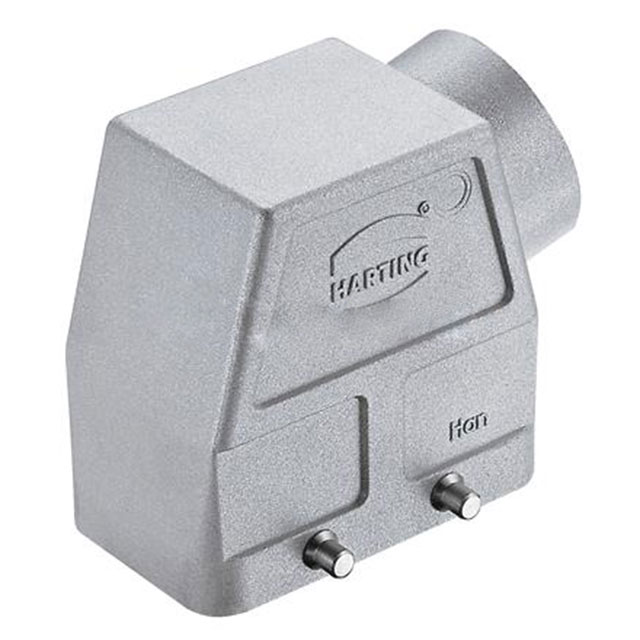

HARTING 09628100522	10B	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Hood	Side Entry	72.6 mm	43 mm	2.835 "	2.858 in	72 mm	1.693 "	Aluminum Die Cast	Locking Clip (2) on Base Bottom		PG21
