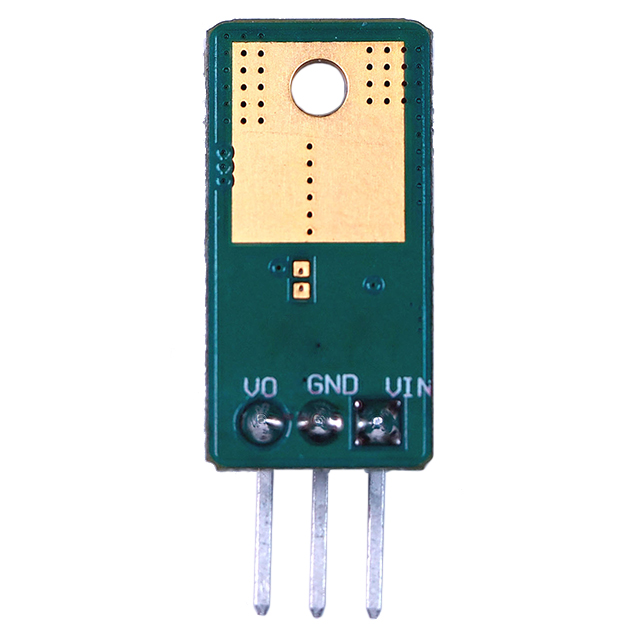

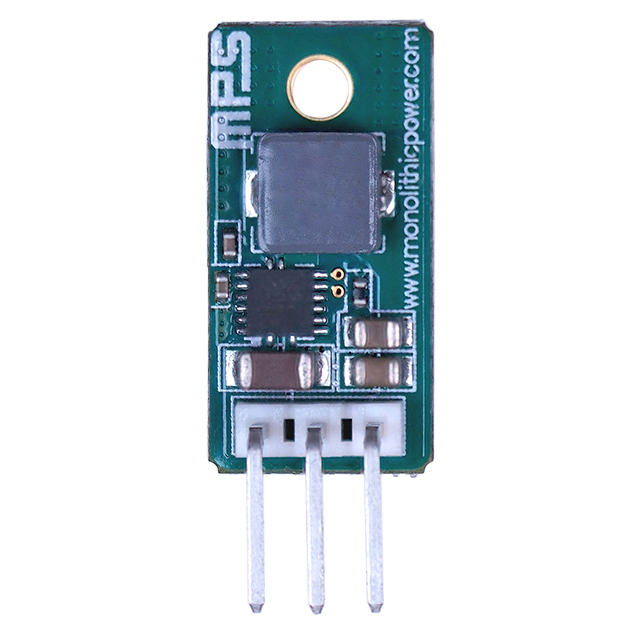

MEZD72402 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
DC/DC CONVERTER, 1 OUTPUT, 3.6 W, 1.8 V, 2 A, MEZD72402A SERIES
| Part | Type | Applications | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Output 1 | Mounting Type | Package / Case | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Linear Regulator Replacement | ITE (Commercial) | 2 A | 85 °C | -40 C | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 36 V | 1 | 4.5 V | 1.8 V | Through Hole | 3-SIP Module | OCP OTP OVP SCP UVLO |
Monolithic Power Systems Inc. | Linear Regulator Replacement | ITE (Commercial) | 2 A | 85 °C | -40 C | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 36 V | 1 | 4.5 V | 3.3 V | Through Hole | 3-SIP Module | OCP OTP OVP SCP UVLO |
Monolithic Power Systems Inc. | Linear Regulator Replacement | ITE (Commercial) | 2 A | 85 °C | -40 C | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 36 V | 1 | 4.5 V | 1.2 V | Through Hole | 3-SIP Module | OCP OTP OVP SCP UVLO |
 Monolithic Power Systems Inc. | Linear Regulator Replacement | ITE (Commercial) | 2 A | 85 °C | -40 C | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 36 V | 1 | 4.5 V | 2.5 V | Through Hole | 3-SIP Module | OCP OTP OVP SCP UVLO |
Monolithic Power Systems Inc. | Linear Regulator Replacement | ITE (Commercial) | 2 A | 85 °C | -40 C | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 36 V | 1 | 6.5 V | 5 V | Through Hole | 3-SIP Module | OCP OTP OVP SCP UVLO |
Monolithic Power Systems Inc. | Linear Regulator Replacement | ITE (Commercial) | 2 A | 85 °C | -40 C | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 36 V | 1 | 4.5 V | 1.5 V | Through Hole | 3-SIP Module | OCP OTP OVP SCP UVLO |
