TAS5102 Series

20-W stereo, 8- to 23-V supply, PWM input Class-D audio amplifier

Catalog

20-W stereo, 8- to 23-V supply, PWM input Class-D audio amplifier

Part	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Max Output Power x Channels @ Load	Utilized IC / Part	Board Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Package / Case	Package / Case [x]	Package / Case [y]	Supplier Device Package

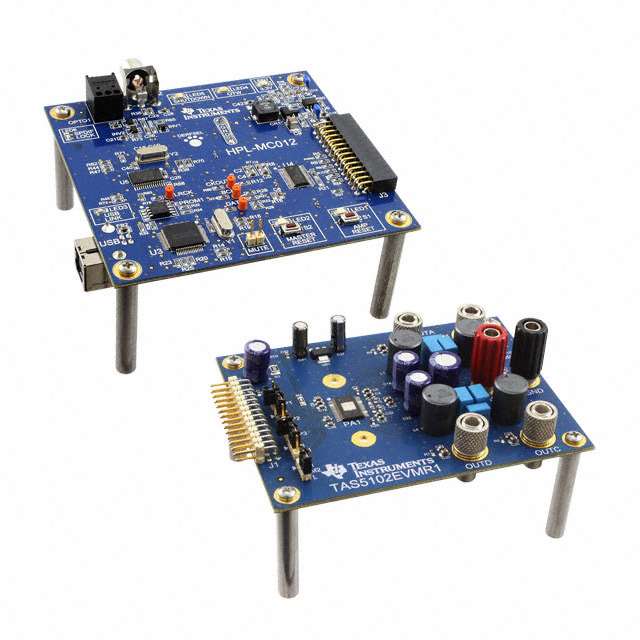

Texas Instruments TAS5102EVM	2-Channel (Stereo)	8 V	23 V	Board(s)	2 8 Ohm 20 W	TAS5102	Fully Populated

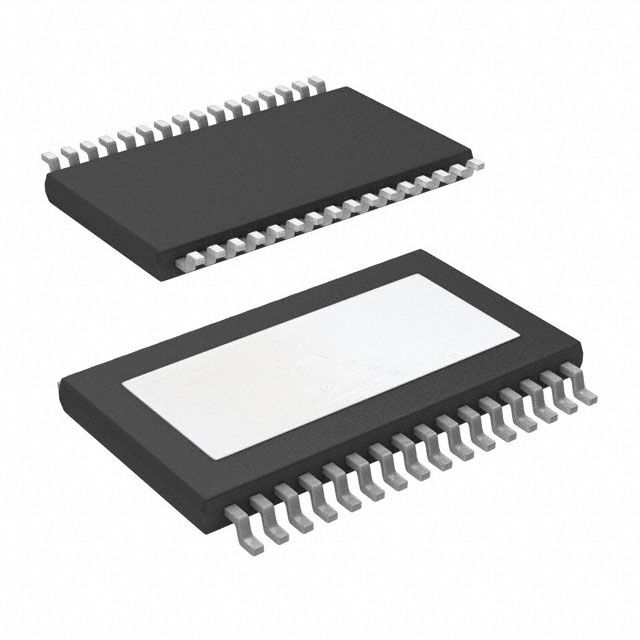

Texas Instruments TAS5102DADR	2-Channel (Stereo)	8 V	23 V		2 8 Ohm 20 W			Digital PWM Inputs Short-Circuit and Thermal Protection	70 °C	0 °C	Surface Mount	Class D	32-PowerTSSOP	0.24 in	6.1 mm	32-HTSSOP

Catalog

20-W stereo, 8- to 23-V supply, PWM input Class-D audio amplifier

Key Features

• 2×20 W at 10% THD+N Into 8-Ω BTL at 18 V (With Heatsink for TAS5102)2×15 W at 10% THD+N Into 8-Ω BTL at 15.5 V for TAS51032×10 W at 10% THD+N Into 8-Ω BTL at 13 V>100-dB SNR (A-Weighted)<0.1% THD+N at 1 WThermally Enhanced Package: 32-pin HTSSOPDAD (TAS5102) Pad UpDAP (TAS5103) Pad DownHigh-Efficiency Power Stage (>90%) With 180-Ω Output MOSFETsWide PVDD Range from 8V to 23VPower-On Reset for Protection on Power Up Without Any Power-Supply SequencingIntegrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overcurrent, Short CircuitBuilt-In Regulator for Gate Drive SupplyError ReportingEMI Compliant When Used With Recommended System DesignAPPLICATIONSTelevisionsMini/Micro Audio SystemsDVD ReceiversHome Theaters2×20 W at 10% THD+N Into 8-Ω BTL at 18 V (With Heatsink for TAS5102)2×15 W at 10% THD+N Into 8-Ω BTL at 15.5 V for TAS51032×10 W at 10% THD+N Into 8-Ω BTL at 13 V>100-dB SNR (A-Weighted)<0.1% THD+N at 1 WThermally Enhanced Package: 32-pin HTSSOPDAD (TAS5102) Pad UpDAP (TAS5103) Pad DownHigh-Efficiency Power Stage (>90%) With 180-Ω Output MOSFETsWide PVDD Range from 8V to 23VPower-On Reset for Protection on Power Up Without Any Power-Supply SequencingIntegrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overcurrent, Short CircuitBuilt-In Regulator for Gate Drive SupplyError ReportingEMI Compliant When Used With Recommended System DesignAPPLICATIONSTelevisionsMini/Micro Audio SystemsDVD ReceiversHome Theaters

Description

The TAS5102/TAS5103 are integrated stereo digital amplifier power stages with an advanced protection system. The TAS5102/TAS5103 are capable of driving an 8-Ω bridge-tied load (BTL) at up to 20 W/15 W per channel with low integrated noise at the output, low THD+N performance, and low idle power dissipation. A low-cost, high-fidelity audio system can be built using a TI chipset, comprising a modulator (e.g., TAS5086) and the TAS5102/TAS5103. This system only requires a simple passive LC demodulation filter to deliver high-quality, high-efficiency audio amplification with proven EMI compliance. These devices require two power supplies, at 3.3 V for VREG, and up to 23 V for PVDD. The TAS5102/TAS5103 does not require power-up sequencing due to internal power-on reset. The efficiency of this digital amplifier is greater than 90% into 8 Ω, which enables the use of smaller power supplies and heatsinks. The TAS5102/3 has an innovative protection system integrated on chip, safeguarding the device against a wide range of fault conditions that could damage the system. These safeguards are short-circuit protection, overcurrent protection, undervoltage protection, and overtemperature protection. The TAS5102/TAS5103 has a new proprietary current-limiting circuit that reduces the possibility of device shutdown during high-level music transients. The TAS5102/TAS5103 are integrated stereo digital amplifier power stages with an advanced protection system. The TAS5102/TAS5103 are capable of driving an 8-Ω bridge-tied load (BTL) at up to 20 W/15 W per channel with low integrated noise at the output, low THD+N performance, and low idle power dissipation. A low-cost, high-fidelity audio system can be built using a TI chipset, comprising a modulator (e.g., TAS5086) and the TAS5102/TAS5103. This system only requires a simple passive LC demodulation filter to deliver high-quality, high-efficiency audio amplification with proven EMI compliance. These devices require two power supplies, at 3.3 V for VREG, and up to 23 V for PVDD. The TAS5102/TAS5103 does not require power-up sequencing due to internal power-on reset. The efficiency of this digital amplifier is greater than 90% into 8 Ω, which enables the use of smaller power supplies and heatsinks. The TAS5102/3 has an innovative protection system integrated on chip, safeguarding the device against a wide range of fault conditions that could damage the system. These safeguards are short-circuit protection, overcurrent protection, undervoltage protection, and overtemperature protection. The TAS5102/TAS5103 has a new proprietary current-limiting circuit that reduces the possibility of device shutdown during high-level music transients.
