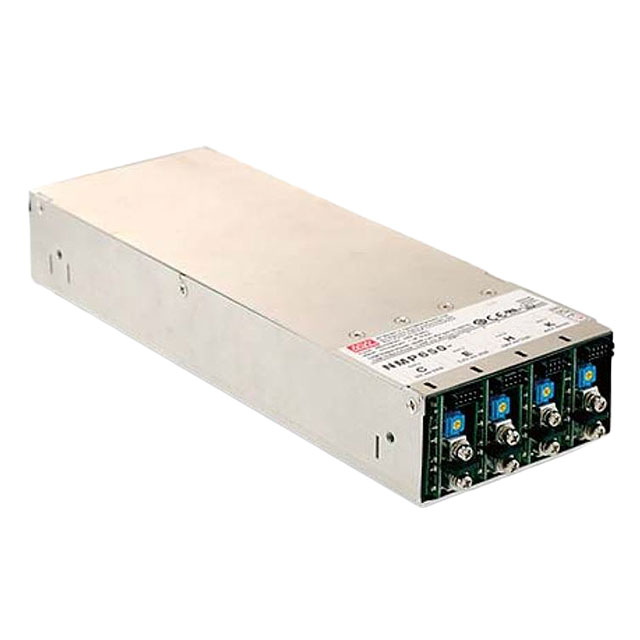

NMP650 Series

Catalog

AC/DC CONVERTER 24V 2X5V 600W

...

Part	Type	Power (Watts)	Voltage - Output 2	Current - Output 3	Current - Output 1	Efficiency	Approval Agency	Voltage - Isolation	Features	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 3	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 2	Number of Outputs	Applications	Mounting Type	Voltage - Output 1	Current - Output 4	Voltage - Output 4
MEAN WELL USA Inc. NMP650-HC#C-00	Enclosed	600 W	5 V	36 A	10 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	5 V	90 VAC 120 VDC	264 VAC 370 VDC	36 A	3	ITE (Commercial) Medical	Chassis Mount	24 V
MEAN WELL USA Inc. NMP650-EH#E-00	Enclosed	650 W	24 V	20 A	20 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	12 V	90 VAC 120 VDC	264 VAC 370 VDC	10 A	3	ITE (Commercial) Medical	Chassis Mount	12 V
MEAN WELL USA Inc. NMP650-EE#E-00	Enclosed	650 W	12 V	20 A	20 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	12 V	90 VAC 120 VDC	264 VAC 370 VDC	20 A	3	ITE (Commercial) Medical	Chassis Mount	12 V
MEAN WELL USA Inc. NMP650-HHKH-01	Enclosed	650 W	48 V		20 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	24 V	90 VAC 120 VDC	264 VAC 370 VDC	5 A	3	ITE (Commercial) Medical	Chassis Mount	24 V
MEAN WELL USA Inc. NMP650-KKHH-00	Enclosed	650 W	48 V		5 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	24 V	90 VAC 120 VDC	264 VAC 370 VDC	5 A	4	ITE (Commercial) Medical	Chassis Mount	48 V	10 A	24 V
MEAN WELL USA Inc. NMP650-HHEC-01	Enclosed	650 W	12 V	36 A	20 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	5 V	90 VAC 120 VDC	264 VAC 370 VDC	20 A	3	ITE (Commercial) Medical	Chassis Mount	24 V
MEAN WELL USA Inc. NMP650-ECE#-00	Enclosed	650 W	5 V	20 A	20 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	12 V	90 VAC 120 VDC	264 VAC 370 VDC	36 A	3	ITE (Commercial) Medical	Chassis Mount	12 V
MEAN WELL USA Inc. NMP650-H#H#-00	Enclosed	480 W	24 V		10 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C		90 VAC 120 VDC	264 VAC 370 VDC	10 A	2	ITE (Commercial) Medical	Chassis Mount	24 V
MEAN WELL USA Inc. NMP650-H#CK-00	Enclosed	650 W	5 V	5 A	10 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	48 V	90 VAC 120 VDC	264 VAC 370 VDC	36 A	3	ITE (Commercial) Medical	Chassis Mount	24 V
MEAN WELL USA Inc. NMP650-KCCH-02	Enclosed	650 W	5 V		5 A	88.5 %	CB CE cURus EAC TUV	4000 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	60601-1; 62368-1	89 mm	1.61 "	9.84 in	41 mm	3.5 "	250 mm	-30 °C	70 °C	24 V	90 VAC 120 VDC	264 VAC 370 VDC	72 A	3	ITE (Commercial) Medical	Chassis Mount	48 V
