A222Y06 Series

Manufacturer: Nicomatic

Catalog

FEM. 6POS STRAIGHT TRGH 1.27MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Type	Material Flammability Rating	Voltage Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Current Rating (Amps)	Number of Rows [custom]	Termination	Contact Finish - Post	Contact Finish - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Features	Number of Positions	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Fastening Type

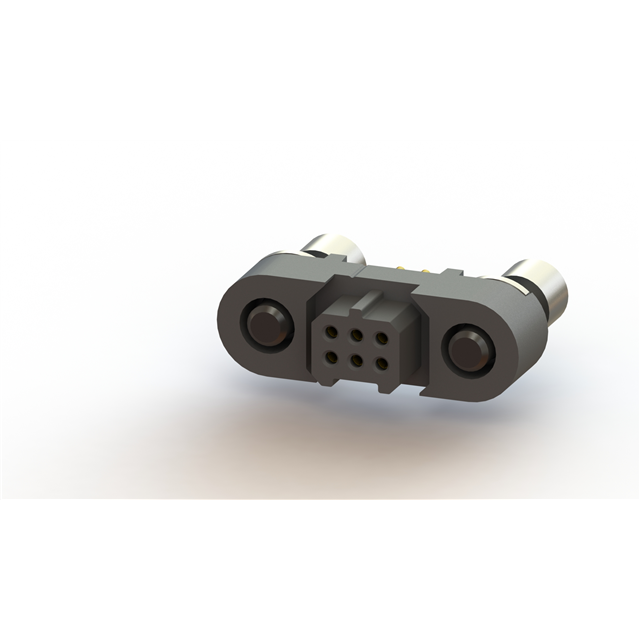

Nicomatic A222Y06V16	0.15 µm	5.9 µin	Copper Alloy	Liquid Crystal Polymer (LCP)	Circular	5.9 µin	0.15 µm	Female Socket	UL94 V-0	600 VAC	1 mm	0.039 in	0.039 in	1 mm	All	2.5 A	2	Solder	Gold	Gold	Receptacle	-65 ░C	200 °C	0.122 in	3.1 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	6	Black	Through Hole	4.4 mm	0.173 in

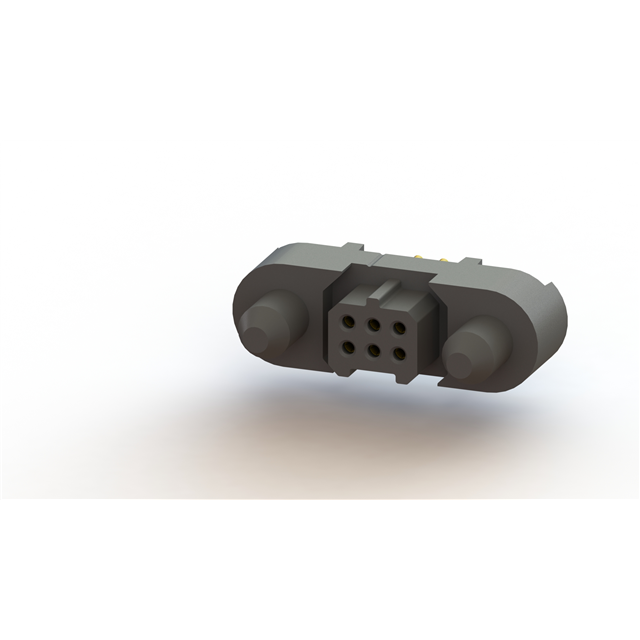

Nicomatic A222Y06R	0.15 µm	5.9 µin	Copper Alloy	Liquid Crystal Polymer (LCP)	Circular	5.9 µin	0.15 µm	Female Socket	UL94 V-0	600 VAC	1 mm	0.039 in	0.039 in	1 mm	All	2.5 A	2	Solder	Gold	Gold	Receptacle	-65 ░C	200 °C	0.122 in	3.1 mm	Guide Pin Mating Guide	6	Black	Through Hole	4.4 mm	0.173 in	Push-Pull
