5642210 Series

Manufacturer: DIALIGHT

Catalog

Catalog

LED CBI 3MM TRI-LEVEL G/Y/B BKLT

Part	Millicandela Rating	Wavelength - Peak	Voltage Rating	Color	Mounting Type	Lens Size	Lens Size	Current [custom]	Current [custom]	Lens Style	Configuration	Millicandela Rating	Lens Type	Voltage Rating	Current [custom]	Current
DIALIGHT 5642210816F
DIALIGHT 5642210172F
DIALIGHT 5642210332F	30mcd Yellow 50mcd Green	565 nm 585 nm	2.1 V 2.1 V	Green (x 1) Yellow (x 2)	Through Hole Right Angle	3 mm	T-1	30 mA	20 mA	Round with Domed Top	3 High
DIALIGHT 5642210303F		585 nm	2.1 V	Blank Yellow	Through Hole Right Angle						3 High	30 mcd	Tinted
DIALIGHT 5642210113F		585 nm 635 nm		Red (x 2) Yellow (x 1)	Through Hole Right Angle				20 mA		3 High	29 mcd 30 mcd	Tinted	2.1V Yellow 2V Red	30 mA
DIALIGHT 5642210814F					Through Hole Right Angle	3 mm	T-1			Round with Domed Top
DIALIGHT 5642210133F		585 nm 635 nm		Red (x 1) Yellow (x 2)	Through Hole Right Angle				20 mA		3 High	29 mcd 30 mcd	Tinted	2.1V Yellow 2V Red	30 mA

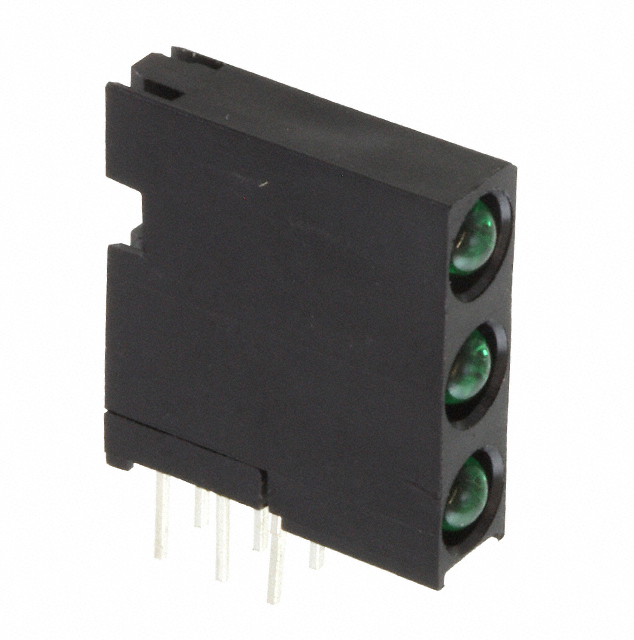

DIALIGHT 5642210222F		565 nm	2.1 V	Green (x 3)	Through Hole Right Angle					Round with Domed Top	3 High	50 mcd	Tinted			30 mA
DIALIGHT 5642210123F		565 nm 585 nm 635 nm	2 V 2.1 V 2.1 V	Green Red Yellow	Through Hole Right Angle						3 High					20 mA 30 mA 30 mA
DIALIGHT 5642210233F	30mcd Yellow 50mcd Green	565 nm 585 nm	2.1 V 2.1 V	Green (x 1) Yellow (x 2)	Through Hole Right Angle			30 mA	20 mA	Round with Domed Top	3 High
