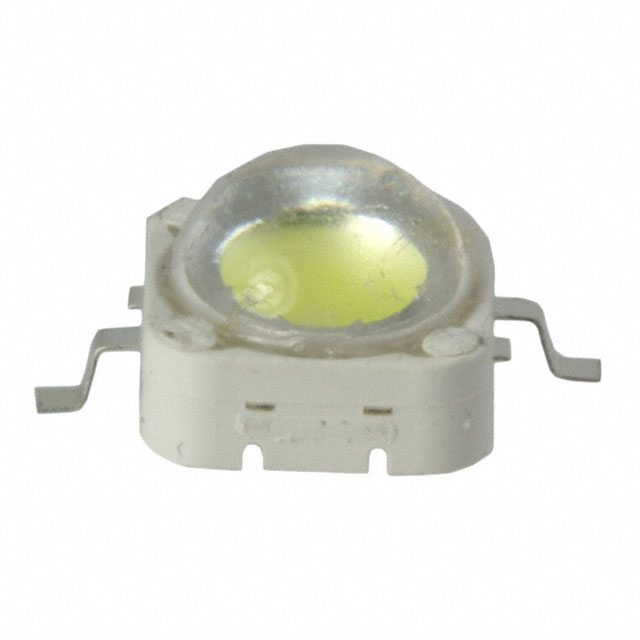

SML-LXL99 Series

Catalog

LED TITANBRITE BLU 465NM SMD

Part	Color	Current - Test	Current - Max [Max]	Wavelength	Luminous Flux @ Current/Temperature	Supplier Device Package	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Viewing Angle	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Temperature - Test	CCT (K)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Thermal Resistance of Package

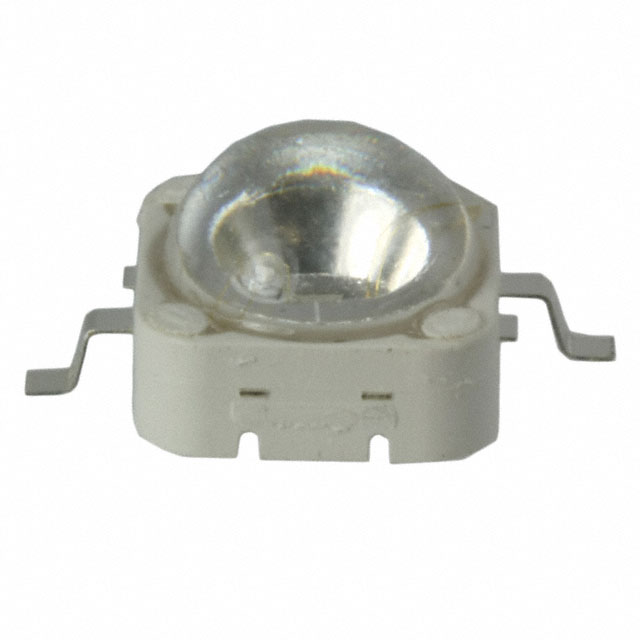

Lumex Opto/Components Inc. SML-LXL99USBC-TR/5	Blue	1.2 A	1.2 A	465 nm	55 lm	SMD	10 lm/W	4.5 V	2-SMD Gull Wing	100 °	0.266 in	6.75 mm	9 mm	9 mm	0.354 in	0.354 in	Surface Mount	25 °C
Lumex Opto/Components Inc. SML-LXL99MWC-TR/5	Warm White	1.2 A	1.5 A				41 lm/W	4.5 V	2-SMD Gull Wing Exposed Pad	100 °	0.265 "	6.73 mm	9 mm	9 mm	0.354 in	0.354 in	Surface Mount		2700 K
Lumex Opto/Components Inc. SML-LXL99UWC-TR/5	Cool White	1.2 A	1.5 A				35 lm/W	4.5 V	2-SMD Gull Wing Exposed Pad	100 °	0.265 "	6.73 mm	9 mm	9 mm	0.354 in	0.354 in	Surface Mount		6000 K	140 lm	240 lm
Lumex Opto/Components Inc. SML-LXL99SIC-TR/2	Red	500 mA	500 mA	635 nm	42 lm	SMD	31 lm/W	2.7 V	2-SMD Gull Wing Exposed Pad	100 °	0.266 in	6.75 mm	9 mm	9 mm	0.354 in	0.354 in	Surface Mount	25 °C				12 °C/W
