PMV6 Series

Catalog

RING TONGUE TERMINAL, M5, #10, 10 AWG, 6 MM², PMV SERIES, YELLOW

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Length - Overall	Length - Overall	Termination	Features	Color	Mounting Type	Contact Material	Insulation	Stud/Tab Size	Wire Gauge [Min]	Wire Gauge [Max]	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Terminal Type	Contact Finish	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]

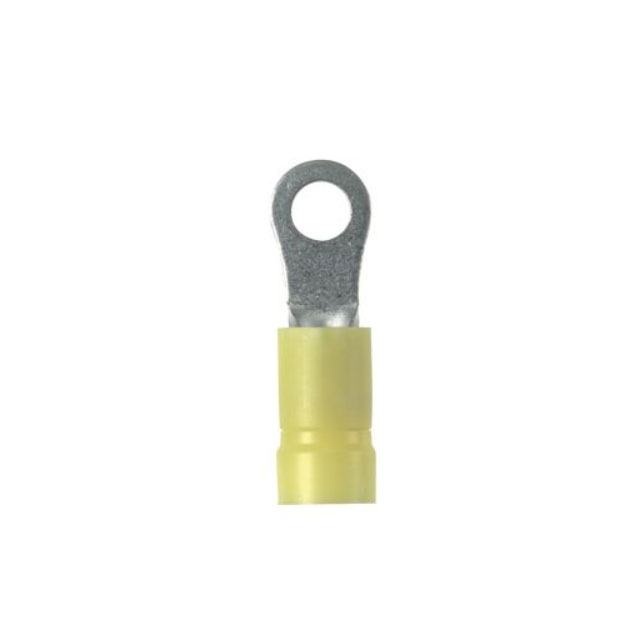

Panduit Corp PMV6-5R-L	6.1 mm	0.24 "	Vinyl	1.067 in	27.1 mm	Crimp	Brazed Seam Serrated Termination	Yellow	Free Hanging (In-Line)	Copper	Insulated	M5 Stud	10 AWG	12 AWG	0.374 in	9.5 mm	0.04 in	1.02 mm	Circular	Tin

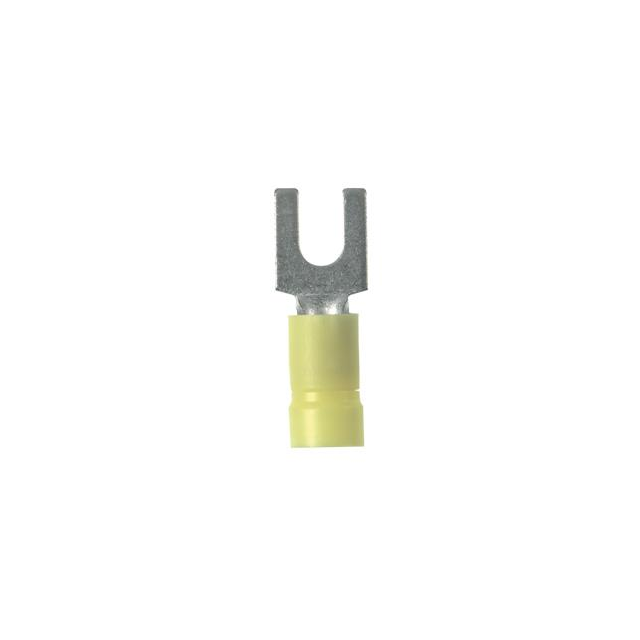

Panduit Corp PMV6-5F-L	6.1 mm	0.24 "	Vinyl			Crimp	Brazed Seam Serrated Termination	Yellow	Free Hanging (In-Line)	Copper	Insulated	M5 Stud	10 AWG	12 AWG	9.65 mm				Standard	Tin	5.33 mm	0.21 in	1.04 in	26.42 mm	0.38 in
