MSTBP Series

Catalog

PLUGGABLE TERMINAL BLOCKS 6 POS 5MM PITCH PLUG 24-12 AWG SCREW

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Wire Strip Length	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Screw Size	Insulation Height [custom]	Insulation Height [custom]	Contact Mating Finish	Mounting Type	Termination Style	Number of Levels	Number of Positions	Type	Current - IEC	Positions Per Level	Voltage - UL	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Voltage - IEC	Plug Wire Entry	Positions Per Level [custom]
Phoenix Contact 1765810	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	M3	0.591 in	15 mm	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1	6	Plug Female Sockets	12 A	6	300 V	0.197 in	5 mm	30 AWG	12 AWG	2.5 mm²	0.2 mm²	Green	630 V	180 °
Phoenix Contact 1769175	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0			Polyamide (PA) Nylon	M3	0.591 in	15 mm	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1	18	Plug Female Sockets	12 A	18	300 V	0.2 in	5.08 mm	30 AWG	12 AWG	2.5 mm²	0.2 mm²	Green	630 V	180 °

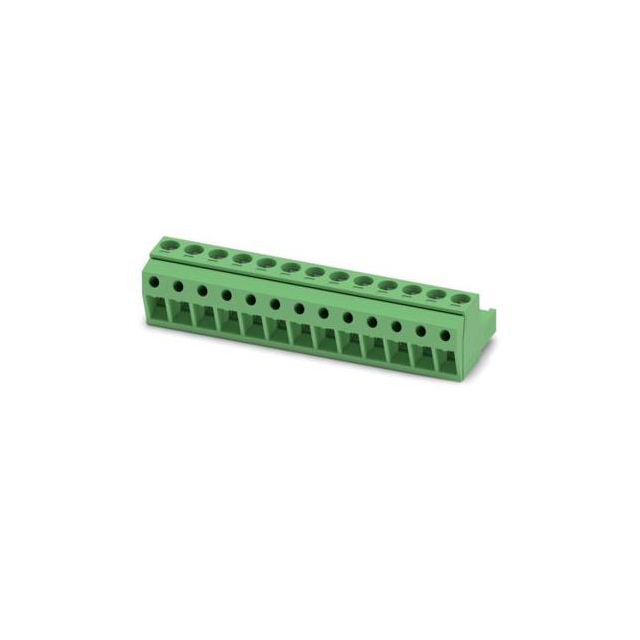

Phoenix Contact 1769120	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0			Polyamide (PA) Nylon	M3	0.591 in	15 mm	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1	13	Plug Female Sockets	12 A	13	300 V	0.2 in	5.08 mm	30 AWG	12 AWG	2.5 mm²	0.2 mm²	Green	630 V	180 °
Phoenix Contact 1769696	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	7 mm	UL94 V-0	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	M3	0.591 in	15 mm	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	1	24	Plug Female Sockets	12 A		300 V	0.2 in	5.08 mm	30 AWG	12 AWG	2.5 mm²	0.2 mm²	Green	630 V	180 °	24
