LPS1-01 Series

Catalog

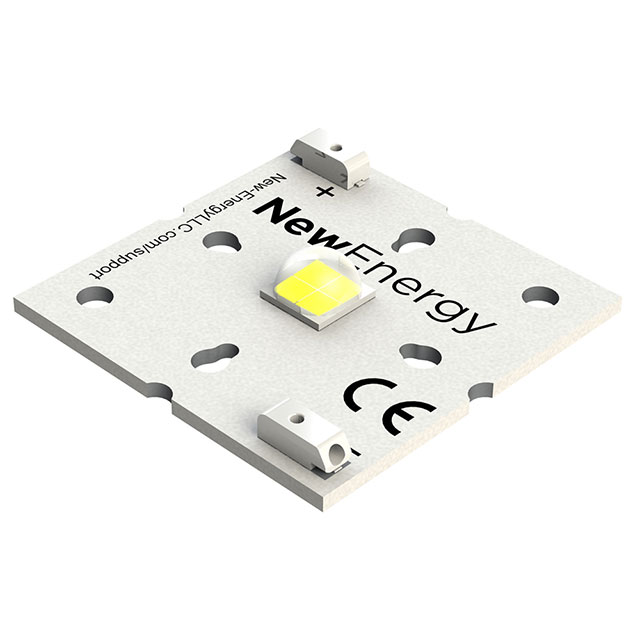

LED MOD XHP70.2 NEUT WH SQ 4000K

Part	Lumens/Watt	Configuration	Temperature - Test	Size / Dimension Width	Size / Dimension Length	Lens Type	Current - Max	Voltage - Forward (Vf) (Typ)	Current - Test	Luminous Flux (Typical)	CCT (K)	CCT Description	Type	CRI (Color Rendering Index)	Color
New Energy LPS1-01C24-4070-00	156 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1830 lm	4000 K	5-Step MacAdam Ellipse	LED Module	70	Neutral White
New Energy LPS1-01C24-3070-00	145 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1710 lm	3000 K	5-Step MacAdam Ellipse	LED Module	70	Warm White
New Energy LPS1-01C24-3080-00	145 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1710 lm	3000 K	5-Step MacAdam Ellipse	LED Module	80	Warm White
New Energy LPS1-01C24-5780-00	156 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1830 lm	5700 K		LED Module	80	Cool White
New Energy LPS1-01C24-2790-00	126 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1485 lm	2700 K	3-Step MacAdam Ellipse	LED Module	90	Warm White
New Energy LPS1-01C24-5070-00	156 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1830 lm	5000 K	5-Step MacAdam Ellipse	LED Module	70	Cool White
New Energy LPS1-01C24-5770-00	156 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1830 lm	5700 K		LED Module	70	Cool White
New Energy LPS1-01C24-4080-00	156 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1830 lm	4000 K	5-Step MacAdam Ellipse	LED Module	80	Neutral White
New Energy LPS1-01C24-2780-00	126 lm/W	Square	85 °C	36.83 mm	36.83 mm	Domed	2.4 A	11.2 V	1.05 A	1485 lm	2700 K	3-Step MacAdam Ellipse	LED Module	80	Warm White
