TC78H660 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
2-CH BRUSHED MOTOR DRIVERS AT 20
| Part | Technology | Voltage - Supply [Min] | Voltage - Supply [Max] | Applications | Current - Output | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Load [Max] | Voltage - Load [Min] | Mounting Type | Function | Supplier Device Package | Output Configuration | Motor Type - AC, DC | Package / Case [y] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

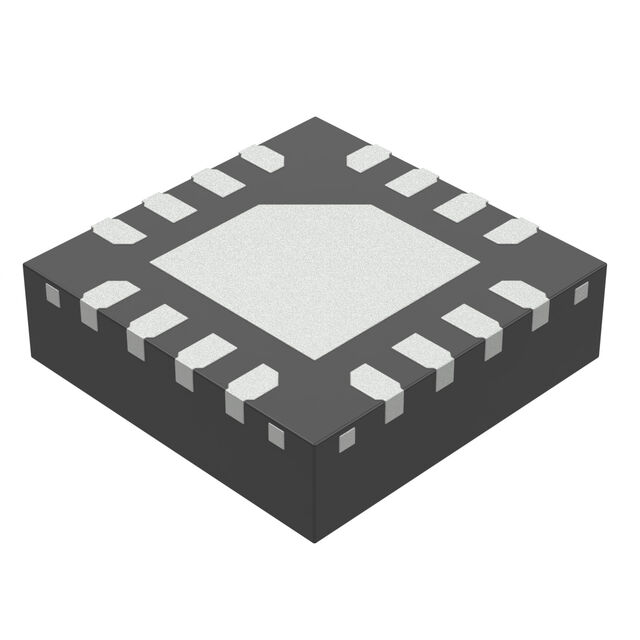

 Toshiba Semiconductor and Storage | DMOS | 1.5 V | 5.5 V | General Purpose | 2 A | 16-VFQFN Exposed Pad | 85 C | -40 ¯C | 16 V | 2.5 V | Surface Mount | Driver - Fully Integrated Control and Power Stage | 16-VQFN 3x3 | Half Bridge (4) | Brushed DC | ||

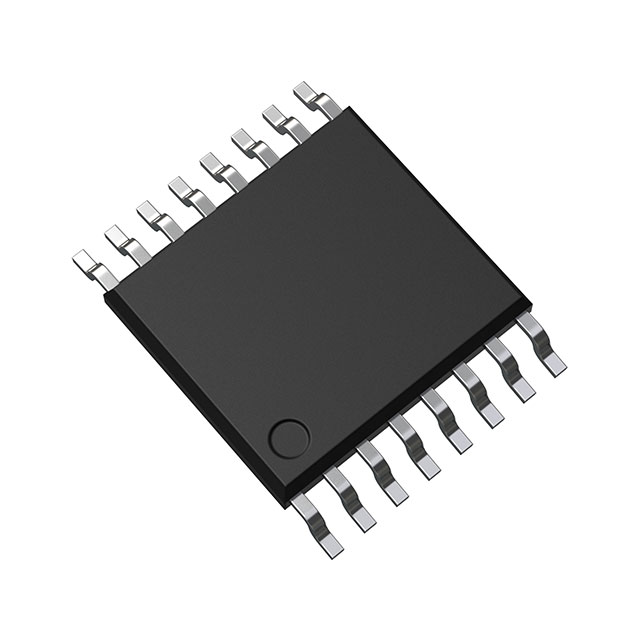

 Toshiba Semiconductor and Storage | DMOS | 1.5 V | 5.5 V | General Purpose | 2 A | 16-TSSOP | 85 C | -40 ¯C | 16 V | 2.5 V | Surface Mount | Driver - Fully Integrated Control and Power Stage | 16-TSSOP | Half Bridge (4) | Brushed DC | 4.4 mm | 0.173 in |
